200/250 Blin Plywood Case 360*200mm China Universal Lathe with CE Bl-S32/32t

Product Description

Lathe/CNC Lathe/CNC Lathe Machine(BL-S32/32T)
- New generation high precision slant bed cnc lathe after optimization based on old S32/32T model

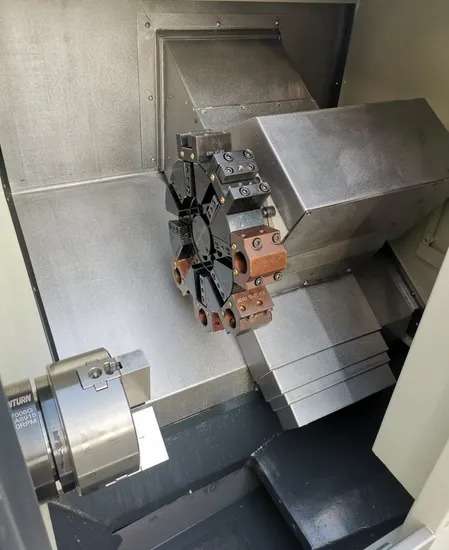

- S32 mount gang tool device, S32T mount 8 station HYDRAULIC-SERVO tool turret.
- Super compact structure(similar as JAPAN machine), big inside space, modern appearance
- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand.
- Adopt 30°mono-block slant bed design, high rigidity, good machining flexibility,easy for chip conveying
- Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, robot etc.
- Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability.
- Frame adopt oil-coolant separation design, adopt independent coolant tank
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision pre-stretched ball screw(double-nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity, can realize μ class precise turning.
- Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for precise machining
Details:

Item	Specification	Unit	BL-S32	BL-S32T
Capacity	Chuck size	/	5'' collet	5''*/6'' chuck
	Max. swing dia. over bed	mm	Φ360	Φ430
	Max. swing dia. over slide	mm	Φ90	Φ250
	Max. turning length	mm	200	180
	Max. turning dia.	mm	Φ200	Φ250
Spindle	Spindle bore	mm	Φ46	Φ46/Φ56*
	Spindle end type	/	A2-4	A2-4/A2-5*
	Spindle speed	rpm	5000
	Max. bar through dia.	mm	Φ32	Φ32/Φ44*
	Spindle motor power	kw	5.5
X/Z axes	X axes travel	mm	290	150+20
	Z axes effective travel	mm	250	180
	X/Z axes motor	Nm	6/6
	X/Z axes linear guideway width	mm	30/30
	X/Z axes rapid moving speed	m/min	28/28
Tool post	Tool turret type	/	Gang tool	Hydraulic-Servo tool turret
	Tool qty	/	5	8
	Vicinal tool changing time	s	/	0.4
	Farthest tool changing time	s	/	0.57
	Toolshank size	mm	16×16(20×20*), Φ25	20×20, Φ25
Tailstock	Tailstock quill taper	/	None
Accuracy	Ex-circle finish turning accuracy	/	IT6
	Finish turning roughness	mm	Ra0.4~1.6
	Finish turning roundness	mm	≤0.003
	Positioning accuracy(X/Z)	mm	0.005/0.008
	Repeat positioning accuracy(X/Z)	mm	0.002/0.004
Others	Coolant motor	w	480
	Coolant liquid flux	m³/h	2.5
	Overall size	mm	1800×1400×1500/2500×1400×1500 (exclude/include chip conveyor)
	N.W.	kg	1700	1800

* As option Main parts brand:

Item	Brand
CNC controller	GERMANY-SIEMENS
X,Z axes driver&motor	GERMANY-SIEMENS
Spindle driver&motor	GERMANY-SIEMENS
Spindle unit	TAIWAN-VOLIS/KENTURN
Tool turret	INDIA-PRAGATI/GERMANY-SAUTER*
Ball screw	TAIWAN-PMI/HIWIN
Ball screw bearing	JAPAN-NSK/NTN
Linear guideway	TAIWAN PMI/HIWIN
Lubrication system	TAIWAN-ISHAN
Rotary oil cylinder&chuck	TAIWAN-AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
Coolant pump	Joint-venture
MPG	USA-HEDSS
Tri-color indication lamp	KOREA-QLIGHT
Isolation transformer	CHINA top-CHINT/JIUKO
Circuit breaker	FRANCE
AC contactor	FRANCE
Relay	JAPAN-OMRON
DC switch power supply	TAIWAN-MEANWELL
Terminal block	GERMANY-WEIDMULLER
Synchronous belt	USA
Synchronous belt wheel	TAIWAN-PTP
Nuts	TAIWAN-YINSH
Shaft coulping	GERMANY-KTR/R+W
Scrapping plate Extensible cover	TAIWAN-WANHE
Chip conveyor	TAIWAN-WANHE
Coolant pipe	TAIWAN-WEIDING
Collet, Gang tool holder	Own-made

Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic collet(S32)/hydraulic chuck(S32T)
-Gang tool(S32)/8 station Hydraulic-servo tool turret(S32T)
Optional configuration:
-SIEMENS 828D/FANUC 0i TF CNC controller
-Chip conveyor
