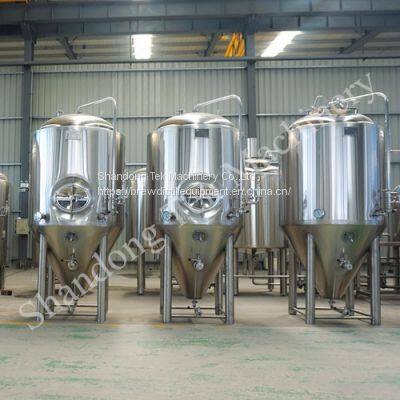

TEKBREW Beer Fermentation Tank
1. Tek Fermenting equipment is widely used for Homebrew, Bar, Brewpub, Restaurant, Microbrewery and small Craft Beer Brewing company,
Capacity from 1bblL to 150bbL.
Type: Single layer, Cooling jacketed, Insulated double layer, Open top fermenter
2. The fermentation tank is complete new, unused and high quality configurations.
3. The tank is completely made of SUS304, 316 or red copper as requirement.
4. 100% TIG welding with pure argon gas shield.
5. Interior Finish: 0.4~0.6μm/Mirror Polishing/pickling and passivating
6.The fermenter is cylinder conical tank type with cooling jackets
7. The tank dimension can be adjustable according to the room space.
Details of 7 barrel Brewery Fermentor
Beer Fermenting Vessel Unitanks
Total capacity: with 25% headspace
Dome top and cone bottom, bottom cone, 60 degree
Interior Shell: SUS304, T 3.0mm;
Exterior Shell: SUS304, T 2.0mm 2B
Insulation: PU, T 80-100mm
100% TIG welding with pure argon gas shield
Interior Finish: to 0.4~0.6μm/ Mirror polishing/pickling and passivating
Cooling Jacket: On both cone and cylinder parts , can be separate cooling zones
Top mounted manhole/Side manhole
Relief/Vacuum valve/PVRV Valve
Dry hopping port
Thermometer Thermowell with high accuracy temperature sensor: PT100
Beer Sample valve
Bung apparatus/Release Valve with pressure gauge
Test Pressure: 0.3Mpa, Working pressure: 0.15-0.2Mpa.
Rotating racking arm on cone with butterfly valve
Drainage with butterfly valve
CIP arm with 360° spraying ball
Tank complete with fittings, valves, and all parts.
Optional:
Level Tube
CO2 Carbonation Stone
Copper Shell
Pressurized Dry Hop feeder
Other requirements
Dimension design
Perlick style sample valve
Additional blow off pipework.
Regular Specification Table for 7bbl Brewery Fermentation Tank
| 1 | Dimension: ø1200*2650mm Adjustable |
| 2 | Total Volume: 25% head space |
|
| NO | Name | Specifications |
| 1 | Head | SUS 304 T3mm |
| 2 | Inner Wall | SUS 304 T3mm |
| 3 | Layer | SUS 304 T2mm |
| 4 | Insulation | PU 80-100mm |
| 5 | Jacket | Dimple Plate SUS 304 |
|
| No.: | Size | Name | Connection |
| 1 | 580*480mm | Side Manhole | Welding |
| 2 | ø38mm | Safety/Vacuum Valve | TC |
| 3 | ø102mm | Dry Hop Port | TC |
| 4 | ø32mm | CIP Ball | TC |
| 5 | ø16mm | Thermometer | TC |
| 6 | ø32mm | Sample Valve | TC |
| 7 | ø76*32mm | Rotation Rack Arm | TC |
| 8 | ø38mm | Drainage Port | TC |
| 9 | ø32mm | CIP Arm | TC |
| 10 | ø32mm | Bung Apparatus | TC |
| 11 | ø25mm | Cooling Inlets and Outlets | Threads |
| 12 | ø10mm | PT-100 | Welding |
| Optional |
| 1 | Carbonation Stone |
| 2 | Level Tube |
| 3 | Others |
More details, please contact us
E-mail: info@brewdistillequipment.com
WhatsApp: 008615064002311
Shandong Tek Machinery Co., Ltd is a professional designer and supplier of high quality complete craft beer brewing equipment, fermentation tank and the turnkey services for breweries and beverage projects in China. Including Malt milling system, Brewhouse, Fermentation system, Cooling System, CIP cleaning system, Controlling system, Beer Kegs, Keg Washing Filling Machine, Bottling machine, Beer Filter System, Distillation Equipment, Wine/Cider Tanks, auxiliary equipment and other tools and accessories used for Home brew, Beer Bar, Brewpub and Brewery.
>>
