Continuous Pulley Steel Wire Drawing Machine

Product Description

High Speed & Low Noise Pulley Type Wire Drawing Machines
Product Description

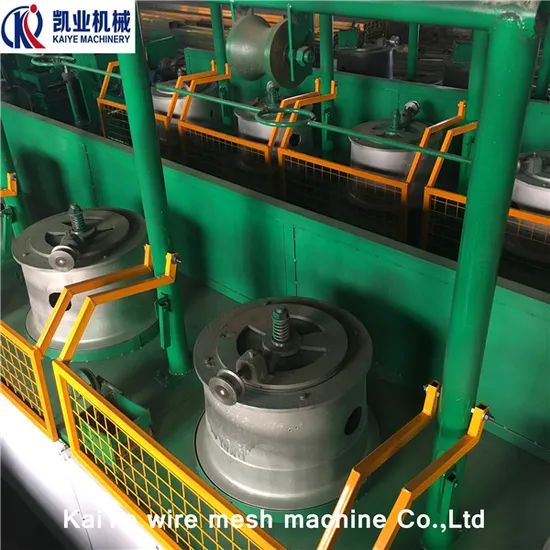

Model 560 pulley continuous wire drawing machine is made up of 6 parallel pots.
The has 7 pots and each pot has own transducer motor (frequency adjustable motor).
Suitable materials: low-carbon steel, copper, aluminum, etc.
Advantages: high production efficiency, convenience in operation.
Application: The product is used to produce standard parts(welding rod,wire nail,screw,etc).
Specification:

Model:	LT-6/550	LT-6/560
Capstan diameter:	550mm	560mm
max.inlet wire:	6.5-5.5mm	8-6.5mm
min.outlet wire:	2.5-2.2mm	3-2.5mm
Designed speed:	320meter/min	300meter/min
Block:	6	6
Motor for single block:	15-18.5kw	22-37kw
Overal size:	6600*1550*2350mm	6600*1700*2550mm

Terms:
Guarantee: One year, during this year, any broken parts caused by the quality, we can offer free, after this year can offer with the lowest cost.
Install and training: Offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD80 per engineer one day.
Delivery time: 25days after advance payment
Payment terms: T/T,30% in advance, and the balance 70% before delivery
Packing: waterproof material, control box: wooden case and the customer's require

---
