High-Precision Compound Grinding Center Mc600 Mc1000

US$50,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
MC600/MC1000
Abrasives
Abrasive Belt
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Wooden Case/Wooden Bracket/Nude Packing
Origin
Zhejiang
HS Code
8460221000
Production Capacity
1000 Set/Year

Product Description

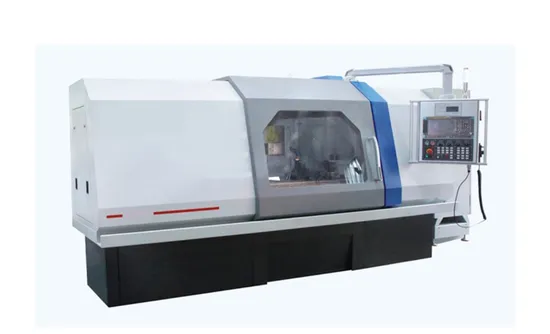

High-precision compound grinding center MC600/MC1000
Main functions and features:
The MC series high- precision compound grinding center is a typical process compound grinding machine.It adopts advanced flexible compound grinding technology and is formed by a combination of multiple grinding wheels. The grindingprocess of the outer circle, end surface, inner circle, cone, non-circle, curved surface and other parts of the workpiece can becompleted in one clamping, which completely changes theprocessing method of multiple machine tools in sequenceprocessing,The internal andexternal composite grindingtechnology adopted by this machine tool is at the forefront ofthe industry in China.
Technical Parameters:
Model No. MC600 MC1000
Item No.
Specifications
Max.Dia to be grinded Φ8~Φ320mm Φ8~Φ320mm
Max.length to be grinded 600 mm 1000 mm
Center height 140 mm 140 mm
Center distance 600 mm 600 mm
Tailstock center 4# 4#
Headstock center 4# 4#
Max.workpiece weight 100 KG 100 KG
Wheel size cylindricalΦ400x50xΦ127 mm end faceΦ750x30x127 mm
Linearspeed of grinding wheel 35 m/s 63 m/s
Spindle speed of grinding wheel 1646 r/min 3000 r/min
Min.pulse amount of X-axis 0.001 mm 0.001 mm
Min.pulse amount of Z-axis 0.001 mm 0.001 mm
X-axis servo motor 11 Nm 16 Nm
Z-axis servo motor 11 Nm 16 Nm
Total motor power 18 kw 24 kw
Roundness 1.5μm 1.5μm
Surface roughness Cylindrical Ra0.32μm end face and I.D Ra0.6μm Cylindrical Ra0.32μm end face and I.D Ra0.6μm
Cylindricity 3μm 3μm

Main Accessories Extra Accessories
Wheel dresser Wheel Balancing stand
Wheel flange Automatic wheel
Outside hydraulic tank Anti-collision and elimination of empty range device
Internal grinding spindle
End face measuring instrument
Wheel wrench
Magnetic paper belt filter water tank
Balance shaft
Outer circle measuring instrument


FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
