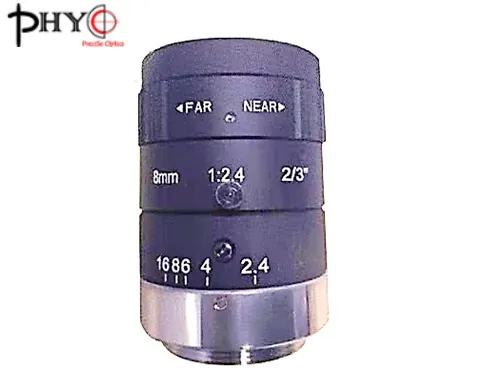

8mm Efl Industry Optical Lens Camera Lens

Product Description

The Feature of the lenses
- Low distortion <1%
- High quality image
- Support the camera for 5M pixel
- Focusing from 0.1m to infinite
Detail specification :

Specification		PHYO5M08F
Structure		9 glass Metal house
Sensor type		2/3"
Max Image		Dia11mm
Focal Length		8mm
F/#		2.4
BFL		12.66mm
Total Length		63.76mm
Mount		C mount
Operating temperature		-20 to +80degree

Drawings for reference
Customized Design upon request. Including the struction, connection, and size weight.
Customized Deisgn and assembly of the industry lenses, they are widely used in different application from cusumer to industry and MIL.
Like the laser, eyepiece, laser range finder, thermal lenses, fixed or continouse zooming type upon request.
Working on the optical lens, both for aspherical and glass spherical lens
______________________________________________________________________________________________________________
Assembly of the lenses
______________________________________________________________________________________________________________
Inspection process and quality control
