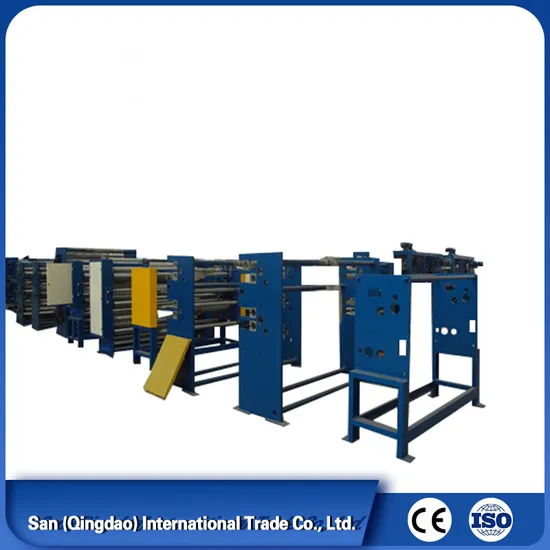

Paper Honeycomb Board Making Machine

Product Description

raw material specifications:
Core paper(width*roll diameter)=(1600mm*Φ1200mm)
Core paper weight:110g/m2-140g/m2
Cover paper(width*roll diameter)=(1300mm*Φ1200mm)
Cover paper weight: 180g/m2-400g/m2
finished sheet thickness: 8-80mm
finished sheet length: 500-3000mm
production speed: 0-15m/min
heating: electric heating, hot air circulation
equipment installed power: about 170KW
equipment total length: 102 meters

Specifications For FX1300 Automatic Honeycomb Cardboard Production Line
1	Model	FX-1300
2	Main material	corrugated paper, kraft liner board, tea paperboard and so on
3	Width of continuous core	1600mm
4	Width of finished panel	1300mm
5	Thickness of core or panel	8-80mm
6	Production speed	0-15m/min
7	Total power	170kw
6	Adhesive	white latex, starch glue.
7	from paper goes in to cardboard goes out, it is all completed in a fully automated production line. Only 2 to 3 operators needed, high paper utilization, advanced technology.
8	this device is equipped with two sets of glue roller that can produce two different honeycomb pore size cardboard use two cladding.
9	use man-machine interface, PLC control, high degree of automation. Greatly improve production efficiency.

San (Qingdao) Machinery Co., Ltd was established in March 2005, based on the tenets of providing professional services wholeheartedly, supplying trustworthy and high efficiency products, helping employees build strong selves and live a prosperous life, and contributing to the development and progress of human society. In conformity with the management philosophy of being responsible, leading and realistic, "San" people are summing up experience and innovating constantly in technology, production, sales and service, and sparing no effort to be a leading integrated service provider for paper machines and paper converting machines in China.

---
