Hot Sale Ring Die Pelletizer 450/470/580/700/850 Model Rice Husk/Straw/Sawdust/Biomass/Wood Pellet Machine Waste Wood Pellet Machine

Product Description

Product Description
Hot Sale Ring Die Pelletizer 450/470/580/700/850 Model Rice Husk/Straw/Sawdust/Biomass/Wood Pellet Machine Waste Wood Pellet Machine

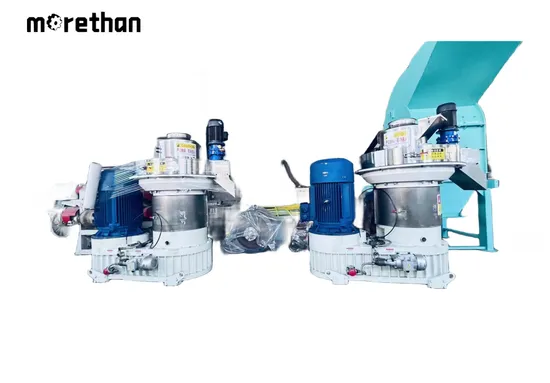

Vertical ring die wood pellet machine is the new design wood pellet maker to make biomass fuel pellets.Biomass pellet machine is suitable for all kinds of hard and soft wood, rice husk, peanut shells.
The pellet machine adopts a large moduls hard toothed helical gearbox, strengthened spindle, stong power output, equipment stable opration, low failure rate, low production cost. It is the preferred machine model in the biomass indusrty.
Advantage of this machine:1. Feeding vertically, free of arch of the raw materials, easy for the heat emission in pelleting room.
2. Ring die with double layer, up and down dual use,reducing production cost.
3. Die fixed while rollers rotating, producing much higher presion, and materials are centrifugal,evenly distributed around, improving production capacity and also assuring pellets hardness and density.
4. With automatic lubrication system,easy maintenance,reducing cost, prolonging working life of the equipment.
5. 24 hours continuous operation, saving labour.
Product Structure Diagram

Product Parameters

MODEL (The eighth generation vertical ring die machine)	Power (kw)	Capacity (kg/h)	A complete set include five parts machines
450	55	800-1000	1.wood pellet mill 2.cyclone system to remove dust 3.Four meter screw conveyor for feeding 4.electric control cabinet 5.automatic lubrication system
470	75	1000-1200
560	90	1200-1500
560	110	1500-1800
580	132	1800-2000
700	160	3000-3200
850	250	3600-4000

Detailed Photos
As a biolomass equipment manufacture company, Henan Morethan Machinery always works on the biomass fuel solution, after our R&D longly research, we have worked out a whole pellet production line, and we can provide our custom one-stop service of pellet plant.
1. Raw materials diameter requirement : 3-5mm(If large ,crusher machine should be used)2. Raw materials moisture:15-25%.(If beyond the scope,dryer machine should be used)

Features of Wood Pellet Machine:
The characteristics of the straw fuel after forming the pellet fuel, the ratio is large, the volume is small, the combustion resistance is easy to store and transport. The volume after molding is 1/30~40 of the volume of the raw material, the proportion is 10~15 times of the raw material (density: 0.8-1.4), the calorific value can reach 3400~6000 kcal, and it is a solid fuel of highly volatile phenol.

1, Wood pellet machine can produce a variety of wood chips, straw, husk and other raw materials based biomass particles;
2, The use of cold pressing molding, extrusion molding and other molding technology, grease polishing polishing process makes biomass particles beautiful appearance, more compact structure;
3, Wood pellet machine high output, low energy consumption, low noise, low failure, machine fatigue resistance, continuous production, economic and durable;
4, The whole machine is made of special high-quality materials and advanced shaft transmission device, and the key components are made of high-quality alloy steel and wear-resistant materials;
5, The wood pellet machine mold is placed flat, the mouth is upward, and it is directly into the granulation mold from top to bottom;
6, The proportion of wood chips is very light, straight up and down, the sawdust into the press wheel rotation to the four sides, uniform compression particles;
7, Wood pellet machine is upward open, easy to heat, in addition to a set of air-cooled cloth bag dust, automatic refueling;
8, Wood pellet machine is a hard enlarged shaft, large cast steel bearing seat, its large bearing does not bear any pressure, not easy to break, long life.
Factory Display
Packaging & Shipping
Inner packing: we can use plastic packing if the client needsOuter packing: usually wooden case or the containerWe can also pack the machine according to the client's need.Delivery method: usually by seaDelivery time: We respect the contract, and will deliver the goods on time as agreed for customized order. For normal products, we have stocks for immediate delivery.

After Sales Service
Pre-sales service1.Tailor-made efficient technical solutions for you.2.Tell us your needs, we will recommend the machine to you, professionally introduce the machine3.Service consultation in 365 days a year.4.24 hours to respond to messages in a timely manner service During the project1.Standardized precision production of production orders in 8 major departments.2. The operation of the machine will be tested before delivery, video will be given to the customer, and the machine will bechecked and accepted3.The entire production process is visualized, which is convenient to check the production progress at any time.4.The idling machine test is combined with the feeder test - strict quality inspection.After-sale service1. Accepting service consultation in 365 days a year.2. Our after-sales engineer can come at any time for maintenance.3. We will return customers on a regular basis, to ensure proper operation of the production line.4. We provide accessories for all equipment.
FAQ
1. Could I have prices of your products ?Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.2. Can we customize our logo/website/company name on products?Yes, we offer OEM and ODM service.3. Can I get a discount?Yes, the more quantity, the better the price. Please contact us to get the best price.4. Do you inspect the finished products?Yes, each step of production and finished products will be came out inspection by QC department before shipping.5. Where are you? Can we go to China and visit your factory?Yes, of course. We are in Henan, China. Welcome to our factory.
6.How about the price?We pursue small profits but quick turnover, and we can give you lower price than other trading companies. If the product is really suitable and can benefit you, the price is negotiable.
7. How do I operate the machine?1)We offer the best operation manual with the machine.2)Specific drawings or teaching videos are offered, if necessary8. How do I get the machine?1) Contact me for latest prices. We confirm the products details.2)We send you the Pl with our bank account3)We prepare the products after we get your advanced deposit4)We send you photos of the machine before and after packing5)You pay the balance, we deliver the machine6) We send you the B/L and other papers, keep track till you get the machine

---
