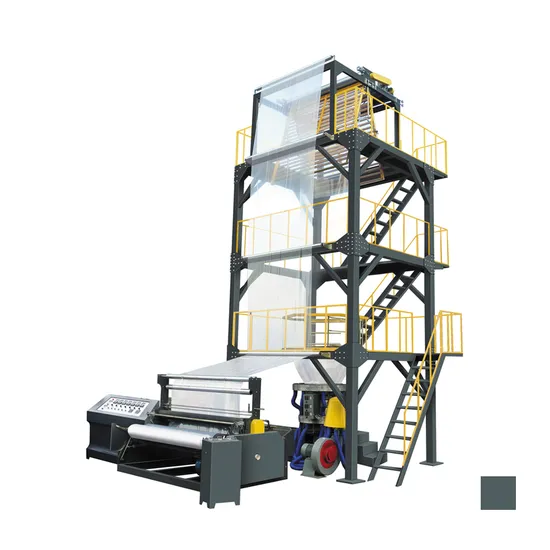

Polyethylene HDPE LDPE LLDPE Film Blowing Machine Plastic Extruder

Product Description

USAGE&CHARACTERISTIC
This machine is applied to produce HDPE,LDPE and LLDPE plastic film.It is widely used for packing food,garments,daily necessities,and other agricuture and industry use.It is equipped with three axis transmission hard surface gear reducer,traction frequency adjustment,independent torque motor rewinder,centrifugal blower,and air compressor(Rotary die head part can be chosen with extra charge)
OPTIONAL EQUIPMENT
Auto loader/ cooling machine/ corona treater/ die rotary device/ air compressor/ manaul net changer/
MAIN TECHNICAL VARIABLES

model	SJ-80/FM1500	SJ-100/FM2000	SJ-110/FM2500	SJ-120/FM3000
screw diameter	80mm	100mm	110mm	120mm
screw ratio L/D	28:1	28:1	28:1	28:1
screw speed	10-100r/min	10-100r/min	10-100r/min	10-100r/min
extrusion output	86kg/h	160kg/h	180kg/h	220kg/h
main motor power	30kw	55kw	75kw	90kw
caliber of film head	Φ300mm	Φ500mm	Φ600mm	Φ750mm
machine head rotation	continunous rotation	continunous rotation	continunous rotation	continunous rotation
thickness of film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
max.film folding width	1500mm	2000mm	2500m	3000mm
total power	56kw	88kw	110kw	145kw
weight of machine	6000kg	7600kg	9800kg	12000kg

overall dimension

7000x2900x5500mm

8000x3500x8000mm

9000x4200x9600mm

10000x4600x11000mm

Ruian Xinye Packaging Machine Co.,Ltd. with a long history is located in Ruian economically developed city on the seashore of the East China sea of Zhejiang.We are an experienced manufacturer in polyethylene film,bubble film extrusion machines, and related bag making machines field since 1995.
At same time we offer one-stop service for the full production lines such as arrange other auxiliary equipments for customers from all over the world. Main Products are :
1 .Mono Layer and multi-layers Polyethylene, Polypropylene, Biodegradable, stretch film , shrink film extrusion line;
2. Kinds of plastic shopping and packing bags, kraft paper bubble envelope production line;
3. Other auxiliary equipments like printing machine , recycle machine, crusher, mixer and so on .
We have won the support and trust from most national and International customers,from the Southeast Asia,the Middle East, Russia,America, Europe and Africa, etc.
THE AFTER-SALE SERVICE OF RUIAN XINYE PACKAGING MACHINE CO.,LTD
1.After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
2. After the commissioning, we will package the equipment by the standard export package for shipment.
3.According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
4. Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
FAQ
1.Q: Are you a factory or trading company?
A: We are established in 1995, an actual factory and manufacturer in the line of printing and packing machine for 20 years.
2.Q: Where is your factory loaded? How can I visit there?
A: Our factory located in Rui'an city, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.
3.Q: Which industries are widely used in of your machine?
A: Bag making machine, film blowing machine, printing machine.
4.Q: How about the payment term?
A: For new customer, our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5.Q: What about your main market?
A: Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
6.Q: How does your factory do regarding quality control?
A: Quality is the most important principle. GREAT WALL always attach great impartance to quality controlling from the every beginning to the every end. Our factory has passed SGS and CE certifications.
If you have any questions,please feel free to contact with us.

---
