Dry condenser wall bushing

Product Details

Product Description

Product Description

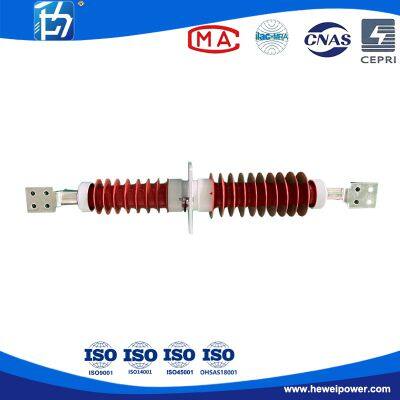

Dry type composite condenser wall bushing is an independently developed and innovated product in China. The main insulation inside the bushing is divided into composite film capacitive insulation and resin impregnated fiber capacitive insulation. The main insulation outside is divided into high temperature vulcanized composite rubber and porcelain. which can meet the needs of different users.
The product is composed of main components such as current carrier, condenser core, outer sheath, shed, flange, end structure and so on. There is a measuring tap on the flange. When partial discharge and dielectric loss factor are measured, it is turned on and used. It should be reliably grounded during normal operation. The two ends of the product are the cable clamps.
Standard: IEC 60137, GB/T4109

---
