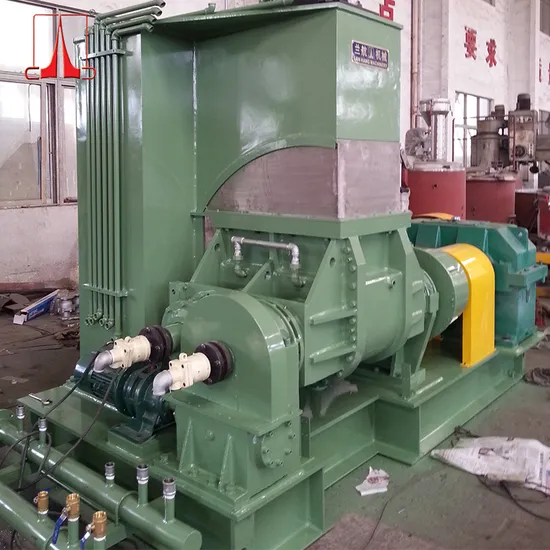

X (S) N-75 No Leakage Rubber and Plastic Compound Dispersion Banbury Mixer Internal Mixer

Product Description

Quick Details Condition: New Type: Rubber Mixer Place of Origin: Jiangsu, China (Mainland) Brand Name: Lanhang Model Number: X(S)N-75/30A Voltage: 380V Power(W): 90000 Dimension(L*W*H): 3.8x2.2x3.2 m Weight: 11 T Certification: CE,SGS,CNAS,IAF Warranty: 12 months After-sales Service Provided: Overseas service center available Rubber Machine Name: Dispersion Mixer Rubber Kneader Color: Green / Blue / etc. (customize available) Dispersion Kneader Material: Stainless Steel / Carbon Steel / Casting Steel Motor of Dispersion Kneader: AC Inverter or DC Variable Speed Dispersion Mixer Rotor: Tangential Dispersion Mixer Rotor Treatment: Wear-resistant Alloy Packaging & Delivery Packaging Details: Delivery Detail:

Wood Pallet & Film Wrap (Dispersion Mixer)

60 Working Days Since Down Payment (Dispersion Mixer)

Dispersion Mixer
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Hydraulic Tilting
4. Tangetial Rotor Why Choose Dispersion Mixer Products from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management

Outline of the Dispersion Kneader
Excellent performance of dispersion enables various kind of materials to mix, from low to high hardness. Not only rubber, plastic or ceramic but Nano-level compound can be applicable
Main Parameters of Our Dispersion Kneading Machine

Model	X(S)N- 35/30A	X(S)N-55/30	X(S)N-75/30A	X(S)N-75/30B	X(S)N-110/30	X(S)N-150/30
Working Volume (L)	35	55	75	75	110	150
Rotating Speed (r/min)	30	30	30	30	30	30
Speed Ratio	1:1.2	1:1.2	1:1.2	1:1.2	1:1.2	1:1.2
Loading Type	Front Feeding	Back Feeding	Front Feeding	Back Feeding	Back Feeding	Back Feeding
Discharge Type	Hydraulic Tilting or Extrusion
Tilting Angle	110-115°
Main Motor Power (Kw)	55	75	90	110	185	220
Dimension (m)	3.0x1.8x2.7	3.5x2.2x2.8	3.8x2.2x3.2	3.8x2.2x3.2	4.4x2.8x3.8	4.7x3.0x4.2
Weight (Kg)	8000	10000	11000	11000	14000	19500

Application of Dispersion Mixer
E.V.A. Rubber & TPR, Soles, Rubber Rollers, Hoses,Belts, Sponges, Sports balls, Vibration Insulators,Elastic Cords, Sealing Materials, Tires, Tapes, aster Batches, Pigment, Ink, Automobile & Electric Rubber Parts, Chemical Industry Compounds.
1. Rubber product for Automobile (Oil seal, Body seal, Gasket, Belt, Hose, Tube)
2. Electric wires (Rubber, Plastic, Wire harness)
3. Belt (Power transmission belt, Conveyor belt)
4. Roll (Rubber, Plastic, Printing, Copying machine)
5. Rubber product for Medical (Plug, Cap, Glove, Dental)
6. Sporting goods (Golf ball, Athletic ball)
7. Food (Chewing gum)

Feature of Lanhang Machinery Dispersion Kneader
1. An Automatic temperature and time control system to provide 100% mixing effect.
2. Easy to clean chamber and easy color changing.
3. In 6-10 minutes/batch output equivalent to 2/3 units if mixing roller.
4. Pressurized and sealed mixing chamber to provide high mixing performance and prevent environmental pollution.
5. Easy installation, operation and maintenance to lower the running cost.

Our Services 1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support

---
