Product Description
Product Description

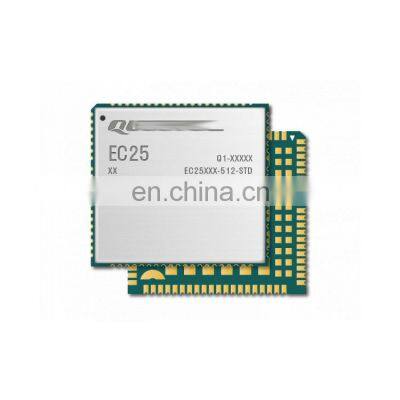

DescriptionLTE EC25 seriesLTE Cat 4 module32.0mm × 29.0mm × 2.4mmMax. 150Mbps downlink / 50Mbps uplink under LTELCC form factorExtended temperature range of -40°C to +85°COverviewThe EC25 is a series of LTE Cat 4 IoT modules in an LCC form factor measuring 32.0mm × 29.0mm × 2.4mm. The EC25 delivers maximum downlink rates of 150Mbps and uplink rates of 50Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. The series consists of 15 variants to meet various geographical demands, which can be compared via the table above.The EC25 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BDS, Galileo and QZSS), and the optional multiconstellation GNSS receiver greatly simplifies product design and provides quicker, more accurate and dependable positioning.A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10/11, Linux, Android) allow the module to serve a wide range of IoT applications including industrial routers, industrial PDAs, rugged tablet PC, and digital signage.Key FeaturesSupports DFOTASupports DTMFSupports MIMOSupports QuecLocatorSupports VoLTE (optional)Multi-constellation GNSS receiver availableWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
