Scaffold Board Rollforming Machine Scaffolding Planks Deck Roll Forming Machine

Product Description

Product Description
Galvanized Panel Scaffolding Walk Board Roll Top Hat Section Forming Machine Ridge Tile Forming Machine

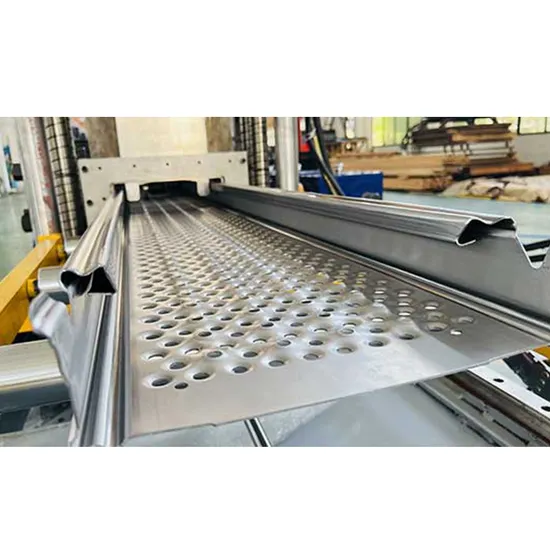

Scaffold plank roll forming machine can make scaffold plank.
We adopt servo feeder to make sure the holes are in high precision. We use punching press to make line speed faster and we use hydraulic post cutting to make sure the profile perfect.
The thickness of raw material is around 1-2mm.
Detailed Photos
Product Parameters

Scaffold plank Roll Forming Machine
No.	Item	Specification	Optional
1	Suitable material	Type:Galvanized Coil, PPGI, Carbon steel Coil
		Thickness(mm):1-2
		Yield strength: 250 - 550MPa
		Tensil stress( Mpa):G350Mpa-G550Mpa
2	Nominal forming speed(m/min)	10-25	Or according to your requirement
3	Forming station	20
4	Decoiler	Manual decoiler	Hydraulic decoiler or double head decoiler
5	Main machine motor	Sino-German Brand	Siemens
6	PLC brand	Panasonic	Siemens
7	Inverter brand	Yaskawa
8	Driving system	Chain drive	Gearbox drive
9	Rollers' materail	Steel Cr12	Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase service life.
10	Shaft	Steel 40Cr	Tempering treatment to prevent deformed and improve hardness
11	Station structure	Torri stand structure	Forged Iron station Or Wall panel station
12	Punching system	No	Hydraulic punching station or Punching press
13	Cutting system	Post-cutting	Pre-cutting
14	Power supply requirement	380V 60Hz	Or according to your requirement
15	Machine color	Industrial blue	Or according to your requirement

Flow Chart
Manual decoiler--feeding--hydraulic punching station--forming machine--hydraulic cutting--out table


Other product links

Company Profile

Certifications

Packaging & Shipping

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.

---
