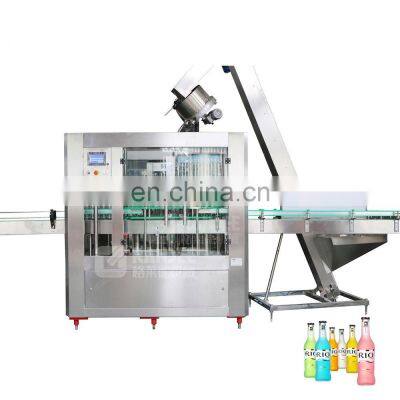

Small glass bottle energy flavor aerated carbonated drink filling machine manufacturing equipment

Product Description

Product Description
Small glass bottle energy flavor aerated carbonated drink filling machine manufacturing equipment
Product Description
Machine description and features:
1. This carbonated drink filling machine used move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2.The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
3.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
4. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
5. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
6. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
7. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
8. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
9. Adopting clamping bottle neck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottle neck way in the whole conveying process. When bottle type changes,you only need to change the board related with bottle diameter.
10.The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12.The electric components and pneumatic components are all introduced from world famous brand products.
Main technical parameter:

Model	DCGF 14-12-4	DCGF 18-18-6	DCGF 24-24-8	DCGF 32-32-10	DCGF 40-40-12	DCGF 50-50-15
Rinsing heads	14	18	24	32	40	50
Filling heads	12	18	24	32	40	50
Capping heads	4	6	8	10	12	15
Suitable bottle size	H:170-320mm Dia:50-100mm
Cleaning pressure(MPa)	0.25-0.3
Capacity(b/h)	2000	3500	6000	9000	11000	18000
Dimension(mm)	21001800 2500	26002100 2500	32002300 2500	42002600 2500	48002800 2500	57003600 2500
Power(kw)	2.2	3.5	3.8	5.5	7.5	10
Weight(kg)	2300	3500	4600	6500	8500	10000

Machine show:
Washing part
Filling part
Capping part
Finished drink show
Related Products

Carbonation mixer and air cooled type water chiller
Capacity: 1500liters-20000liters/hr
Co2 content: ≥3.5
Carbonation mixer and Water chiller
Process: Water, syrup, CO2 mixing system
Carbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8
Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature)

Soda Water Mixing System
Process: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tank
The output of beverage processing system depending on how many liters per hour for carbonated drink, soda water or juice,etc.
Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc, steam heating or electrical heating type, steam heating boiler will matched fuel oil boiler, but save electricity, eletrical heating type boiler will power-consuming.
Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, double layer with warming jacket, motor with blending system
Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. double layer with warming jacket

Company information
Workshop detail
Our team
Our exhibition
Project cases
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
