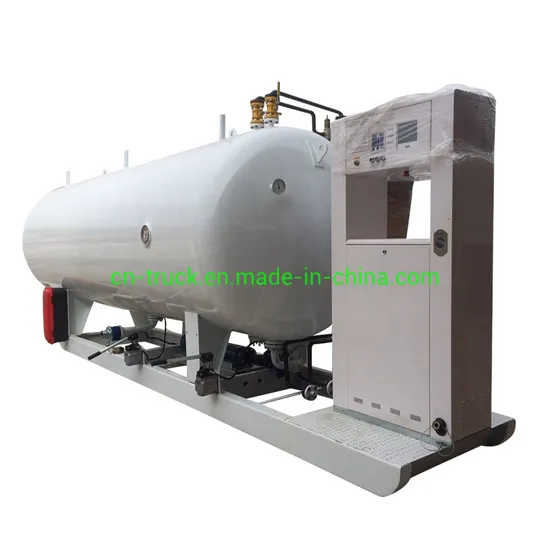

New Make 2ton 5ton 10ton 15ton 20ton Gas Filling Station Mobile LPG Skid LPG Plant

Product Description

Company Profile
new make 2ton 5ton 10ton 15ton 20ton gas filling station mobile lpg skid lpg plant
1, ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is the biggest special purpose vehicle manufacturer in China.also we are famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW.Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.

2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
We have been in this field for over 10 years, we have more than 300 types of special trucks, our workers are more than 1000 and factory is more than 690,000m2 .We have successfully exported our trucks to Ghana, Sudan, Nigeria, Tajikistan, Namibia, Burma, Korea, Iran, Iraq, Vietnam etc. many Africa & Asia countries more than 4000 trucks every year.
3.Quality control:our company truck pass ISO,3C,BV certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
4.Design capacity :Our factory have 30 technician and designer.
5. Exhibition:our factory attend the Guangzhou Trade Fair each year.
6. Export market: Africa,Asia,South America,Pacific and so on
7.Our company cooperate with famous chasis manufacturers,include all chinese brand like FOTON , DONGFENG , SHACMAN , HOWO , FAW , GENLYON , NORTHBENZ , CAMC , JAC , JMC .
Detailed Photos
new make 2ton 5ton 10ton 15ton 20ton gas filling station mobile lpg skid lpg plant
I. Standard Configuration
1. LPG Storage Tank 2. Underframe
3. Pipeline System
4. LPG Filling Pump
5. LPG Filling Scale or LPG Dispenser
6. Electrical Control System
7. Sunshed
Compressor, signal transmitter,etc. can also be provided to realize the functions of loading LPG from the tankers without pump into the LPG filling skid and remotely transmitting signals, etc.

II. Performance Advantages This product is an integrated equipment for metering civil LPG storage tank (household gas tank). The main equipment adopts integrated skid design, including LPG storage tank, process piping, hydrocarbon pump, LPG filling scale and control carbinet. It has the unloading function for LPG tanker with pump, unloading function for LPG storage tank skid with pump, filling function for LPG cylinder in car, bottling function for civil LPG cylinder, loading function for LPG tanker,function of safe reflux, etc.

III. Advantages
1. High integrity, small occupied land area Standard design, seriation is formed 2. Complete functions, meet various customer requirement
3. PLC control, safe and reliable
4. Short installation time, commissioning inside plant
5. Skid design, convenient for transportation
Other petrochemical products

Product Parameters

0 m3 Main devices configuration table of skid-mounted filling station
No.	Name of Devices	Specification	Unit	Quantity
1	Storage tank	10m3	set/sets	1
2	Base and platform	4000*2000*200mm	set/sets	1
3	Dispenser	JDK50 LLarge touch screen, two-hose, dual display	set/sets	1
4	Nitrogen cylinder	φ 219	piece/pieces	1
5	Gas cylinder regulator	YQD-09	set/sets	1
6	Anti-explosion connection box	Terminal 20A24	set/sets	1
7	Stainless steel spherical valve	ZG3/4	piece/pieces	2
8	Copper spherical valve	G1/4	piece/pieces	2
9	Spray line	DN25	set/sets	1
10	Staircase	Circular tube φ 16	set/sets	1
11	Combustible gas alarm	RB10-2	set/sets	2
12	Filling pump	LF2G-8	set/sets	2
13	Damping pressure gage	Y-100 0~2.5 Mpa	piece/pieces	4
14	Temperature gage	_40° C~+80° C	piece/pieces	2
15	Liquidometer	DN20 L=1800	set/sets	2
16	Stop valve	DN80 J41N-40	piece/pieces	2
17	Stop valve	DN50 J41N-40	piece/pieces	4
18	Stop valve	DN20 J41N-40	piece/pieces	2
19	Spherical valve	DN50 Q41F-40	piece/pieces	10
20	Spherical valve	DN25 Q41F-40	piece/pieces	4
21	Spherical valve	DN15 Q41F-40	piece/pieces	3
22	Quick action emergency valve	DN50 QDY641F	piece/pieces	2
23	Damping pipe	DN50	piece/pieces	4
24	Percolator	DN50 Y907-40	piece/pieces	2
25	Safety valve	DN80 A42F-25	set/sets	2
26	Safety return valve	DN50 AH42F-25	set/sets	2
27	Spawning valve	DN15 A21F-25	set/sets	1
28	Dispenser connecting pipe	DN50 8m	piece/pieces	1
29	Dispenser connecting pipe	DN25 8m	piece/pieces	1
30	Controller cabinet	-	set	1

LPG SKID STATION
	Capacity(t)	Size (mm)
		Length	Width	Height
LPG skid station	3	2000	2000	5000
	4	2200	2200	8500
	5	2200	2200	10000
	6	2200	2200	10000
	7	2200	2200	11000
	8	2200	2200	12000
	9	2200	2200	12500
	10	2200	2200	13500
	30	12000	26000	32000
LPG dispenser for skid station
Model Nr.
FlowMeter	Type
	Accuracy	± 0.3%
Input Voltage		110V/220V/380V, 50Hz/60Hz
Nozzle		Auto Shut-off Nozzle
Environmental Condition		-40° C~~+55° C
Control Type		Solenoid Vale Control Type
Preset		Function Provided(Small LCD Indicator)
Display (Counter)	Type	LCD ( White or Yellow Green or Blue screen)
	Digit of Volume	0~~999, 999(6 Digits), Decimal point changable
	Digit of Amount	0~~999, 999(6 Digits), Decimal point changable
	Digit of Unit price	0~~9999(4 Digits), Decimal point changable
	Digit of Total Range	0~~99, 999, 999, 99
Optional Display	Type	LCD ( White or Yellow Green or Blue screen)
	Digit of Volume	0~~99, 999, 999(8 Digits), Decimal point changable
	Digit of Amount	0~~99, 999, 999(8 Digits), Decimal point changable
	Digit of Unit price	0~~999999(6 Digits), Decimal point changable
	Digit of Total Range	0~~99, 999, 999, 99
Totalizer		1~~9, 999, 999
Hose		4.5m
Weight
Dimension(L× W× H)
Dimension(L× W× H)Of Qty of Container

Certifications
Packaging & Shipping
FAQ
Q1. Quality control
A:We make quality control for each step while producing and before shipping.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. LC terms is also can be accepted .
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.DAP etc .
Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. For standard products, delivery time is as below:Water tanker truck:7 days
Fuel tanker trailer:15-20days
Garbage truck:15 days
Sweeper road truck:25 days
Wecker truck:7-10 days
Suction sewage/Fecal truck:7-15 days
Crane truck:15 days
Refrigerator/Van truck:7-15 days
Dump truck:20 days
Concrete mixer truck:7-25 days
LPG :20-30 days
LED truck:7-15 days
(the above is left hand drive chassis ,if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .)
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. How to control truck quality?
A: we have Rich experience workers and engineer to control quality before and on production , we strictly followed STATE special truck technical specification and safety production specification . We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Q9. Did you sell truck to our country before? A:Our main market is Africa, Asia, South America , Oceania ,middle east , annual sales is around 5000units and keeping growing every year . Success Case
