Yarn Assembly Doubling Winder Winding Machine for Spandex Fiber Ammonia Thread with 4, 8, 12, 16 Spindles

Product Description

Product Description

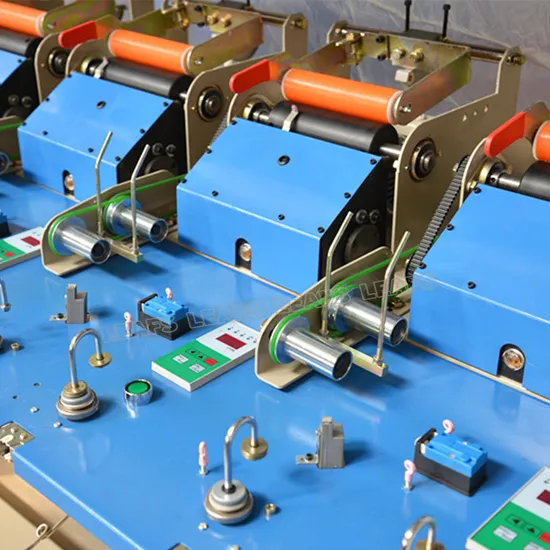

LSD120B assembly winder for spandex fiber,combined with machine and electric are designed and manufactured by our company,it is the front equipment of the two-for-one winder.It can take different materials bobbin to parallel-line bobbin which can be processed on two-for-one wider,especially,to assembly spandex fibers with other fibers.Meanwhile,it completely solved the defects of oil leakage and yarn separation,and greatly improved the quality of the yarn.Others,take driving bobbin feeding replace passive bobbin feeding will greatly reduce expenses of manual work.
Product Parameters

Machine type	Single side/single layer
Form of transfer	Single transfer
Maximum package diameter	200mm
Motor power	180w/drum
No.of drums	48 drums(4drums/section)
Take speed	Max.speed 650 m/min
No.of yarns	2~3yarns
Dimension	L1520×section B900 H1400 mm

Features
1. Adopting one motor control one spindle system, easy to adjust yarn speed and winding;
2. Frequency control and broken twsting device avoiding yarns missed;
3. Electron measure device, which can adjust surface speed and the length of yarn;
4. Adopting center computer control system, which ensure correct data;
5. Adopting advanced prevent overlap system, make finished yarn has a nice shape;
6. Single layer,single side, control box was made by plate.

Detailed Photos
Customer Show
Related machine
Production process

Company Profile
We will pack the goods carefully and safely deliver to your hands.
Our express can be sent to various locations and can be delivered.
FAQ
Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?
The main structure and raw materials are all supplied by large companies.Key parts are research and developed by our own staff. We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
Factory + trade (integration),30 years focusing on textile machine field,More than 10 years exporting experience.
Q: Product /Quality Guarantee and After Sale Service?
12 months warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.

---
