50L Plastic Blue Open Top Drum Extrusion Blow Molding Machine

Product Description

China Jwell/Bekwell BEK-BM05D/12D/20D/30D Double Station Blow Molding Machine for Oil bottle,lubrication oil,Cooling water tank(We can offer complete solutions:Mould with auto deflashing,Online labeling machine,Take out robot,conveyor,Online leak detector, especially high speed blow molding machine use the lowest tempreture technical).
Product Overview:

Performance and advantages
·Suitable for producing 15-30L different size of jerrycan ,open top drums, cooling water tank etc.
·Optional view strip line system.
·According to the product size,select different cavity of die head.
·According to the different material,optional JW-DB single station
hydraulic screen-exchanger system.
·According to customer's requirement,optional auto-deflashing on line,scrap conveying on line,finished product conveying on
line.
Technical parameters of machine

Model	Unit	BM05D	BM12D	BM20D
Max product volume	L	5	12	20
Dry cycle	Pc/h	700*2	600*2	600*2
Die head structure	Continuous type
Main screw diameter	mm	75	90	90
Max plasticizing capacity (PE)	kg/h	90	160	160
Driving motor	Kw	30	45	45
Oil pump motor power	Kw	11	15	15
Clamping force	KN	70	120	160
Space between platen	Mm	150-510	240-640	280-680
Platen size W*H	Mm	350*400	450*500	500*520
Max. mold size	Mm	360*400	500*520	560*520
Platen moving stroke	Mm	450/520	600/650	650
Heating power of die head	Kw	7.5	10	12.5
Machine dimension L*W*H	m	3.7*3.1*2.7	4.2*3.2*3.0	4.3*3.2*3.1
Machine weight	T	8.5	12	14
Total power	Kw	60	90	93

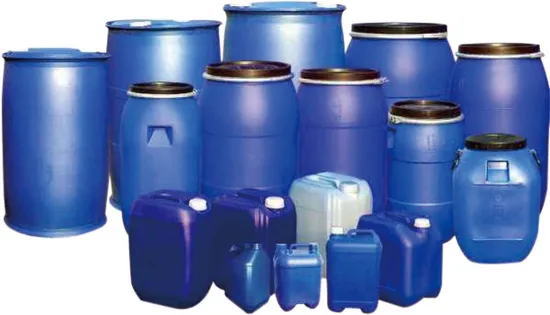

Blow moulding machine/extrusion blow molding machine samples:
Extrusion Blow molding machine running in our customer workshop
Different kind of Control system of machine
Parison wall thickness control system
No1. SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
No2 . B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
No3 . MOOG Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Extrution & Die head
No1.The extruder uses screw and barrel, which is a famous brandJINHAILUO all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
No2.Bekwell& Jwell supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy
Open&Closing system
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system
No1.SIEMENS CPU unit
No2.SIEMENS temperature-control unit
No3.SIEMENS digital-output unit
No4.SIEMENS analog-output unit
No5.MITSUBISHI CPU unit
No6.JWELL invertor revolving speed-control
No7.Schneider electric components
seals service network
Contact us !!
Foshan Bkwell intelligent equipment co.,ltd
Add: E04-1-04BLOK,LUNJIAO INTENSIVE INDUSTRIAL ZONE,SHUNDE DISTRICT,FOSHAN,CHINA

Web:jwellmachinery.en.made-in-china.com
jwellmachinery.en.made-in-china.com
1. What are BEKWELL (JWELL new company in foshan china) coming from?
BEKWELL(Jwell)made the first Chinese screw and barrel in 1978 in brand name Jinhailuo after hundreds time of testing. Nowaday, in this location Zhoushan city, there are more than 300 companies in this reason. After more than 35 years development, JWELL is the TOP 1 extrusion machine supplier in China with 5 factories, 300 design&test engineer, 3000 employee located in Zhoushan, Shanghai, Taicang, Dongguan, FOSHAN, Liyang.
2. Why should I choose Jwell?
We follow Germany type of business heading as the worldwide reliable supplier of plastic extrusion line. We have already provided more than 500 lines located in all countries because we are providing the lastest technology, qualified machine, reliable component and best after-service. 300 Engineers are travelling in the world throughout year for installation and test of machine, the after-service are free and availble forever. That's why we grow up from 10 staff company to 3000 staff Pioneer of Chinese extrusion machine supplier.
3. Are U the only JWELL in MADE IN CHINA?
Right! There are many many supplier with name Jwell in MADE IN CHINA, but we are the only approval sale manager working in MADE IN CHINA. Please donot be cheated by other company in the name of JWELL screw, Jwell extruder, Jwell line, etc. They're all unhonest and untrustworthy supplier!
For more infomation about Jwell blow-molding machine, please contact Jade Liang
Welcome to BEKWELL / Jwell!

---
