Plastic PVC Leather Making Machine Sy-660 Calender

Product Description

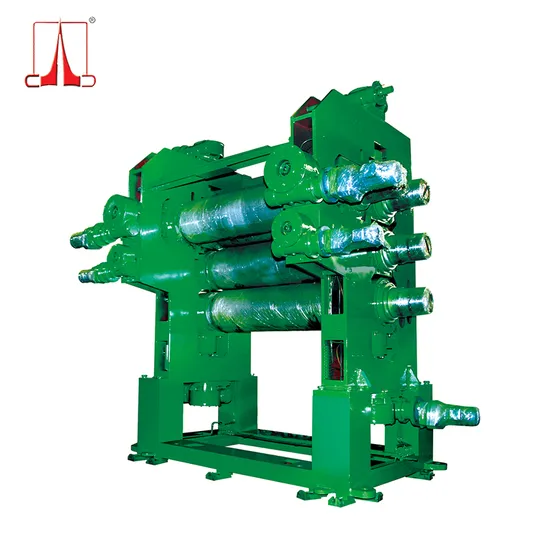

XY-4L 4 roll Rubber Calender Machine

Application of 4-roll calender The 4-roll calender offers the advantage of working air out of the rubber more thoroughly and gets uniform thickness of film or sheet. It can also be used to coat the rubber film with single or both sides of textile operation.
In the calendering process, fabric and rubber or plastic material is passed through a series of rollers to flatten, smooth and commingle the two or more materials. The more rollers are, the more rolling, and more effective.
It is kind of precise and durable rolling equipments with simple operation, high precision, and good effect.

Why Choose 4-roll calender from Lanhang
1. Since1992, with more than 20 years' professional experience
2. Overseas service center available (in Europe, Japan, Dubai, etc.)
3. International CE, SGS, IAF, CNAS certification
4. National high-tech enterprise / products
5. Various National Patent for Inventions Letters for rubber & plastic machinery
6. ISO9001:2008 management
Main technical parameter:

Project / Model	XY-4L 630 XY-4L 630 XY-4L 630	XY-4L 1120A	XY-4L 1400	XY-4L 1500	XY-4L 1730
Roll Diameter(mm)	230	360	400	450	610
Working length(mm)	630	1120	1400	1500	1730Minb
Min product thickness(mm)	0.2	0.2	0.2	0.2	0.15
Product width(mm)	100-500	500-920	1200	1250	1500
Motor power(kw)	15	55/18.3	75/25	100/33.3	160
Weight(t)	4.8	14.65	18.65	33.5	62

---
