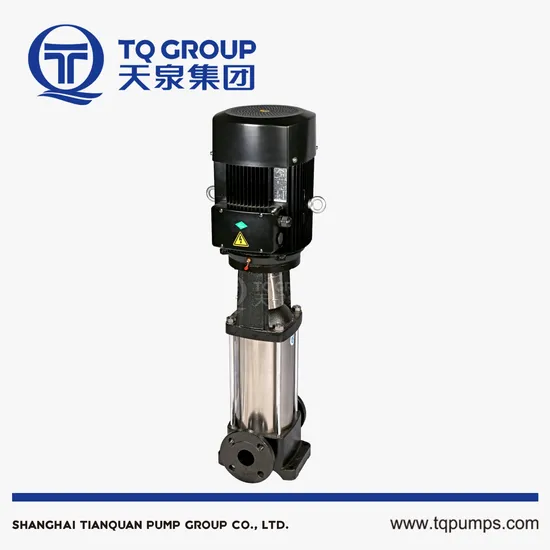

4m3h 1.25inch Vertical Multistage Stainless Steel Centrifugal Pump High Pressure Water Pump 0.5HP/0.75HP/1HP/2HP/3HP/4HP/5HP Multistage Pump

Product Description

Product Description
TDL/TDLF is a vertical multistage centrifugal pump, featured with all stainless steel wet parts. This series is mainly applied to high lifting and water-pressure boosters. The series uses a standard GB motor and assembly mechanical seal, allowing repairing the pump without disassembling the pump and easily replacing the motor according to the customer's needs. Due to its more compact structure, lighter weight, low noise, and elegant appearance, it is the best substitute for the previous cast icon multistage pump. TDL is suitable for non-corrosive liquids and TDLF is suitable for mildly corrosive liquids.

Product Advantage
Hydraulic Coverage
Product Structural Drawing
Product Parameters

Model		Motor Power (kW)	Flow (m3/h)	2	3	4	5	6	7
TDL4 TDLF4	-2	0.37	Head (m)	17.5	16.5	15.5	14.5	13	11
	-3	0.55		26.5	25.5	23.5	22	19.5	17
	-4	0.75		35.5	34	32	29.5	26.5	23.5
	-5	1.1		44.5	42.5	40	37	33	28.5
	-6	1.1		54	52	48.5	44.5	40	34.5
	-7	1.5		63	61	57	52	47	40.5
	-8	1.5		73	69	65	60	54	46.5
	-9	2.2		82	78	74	68	61	52
	-10	2.2		92	87	82	76	68	58
	-11	2.2		101	96	90	83	75	64
	-12	2.2		110	105	99	91	82	70
	-13	3		120	114	107	99	89	76
	-14	3		129	123	116	107	96	82
	-15	3		138	132	124	114	103	88
	-16	3		148	141	132	122	110	94
	-17	4		157	150	141	130	116	100
	-18	4		166	159	149	137	123	106
	-19	4		175	168	157	145	130	112
	-20	4		185	176	166	153	137	118
	-21	4		194	185	174	160	144	124
	-22	4		203	194	182	168	151	130

Detailed Photos
