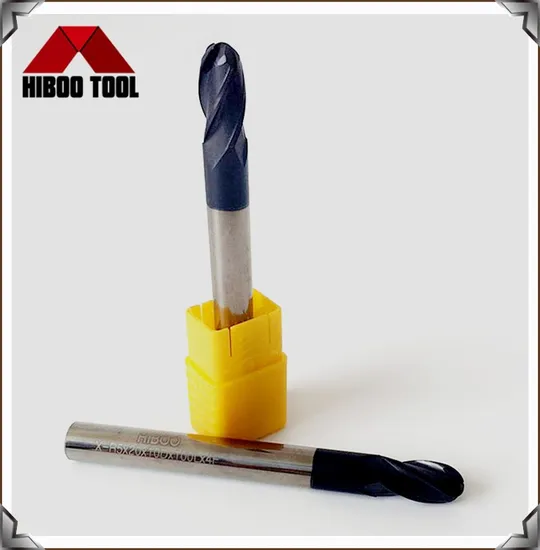

Manufacturer Cheap HRC45 Long Ball Nose Carbide End Mills

Product Description

Factory hot sale Carbide ball nose router
1. Super-Fine Micrograin carbide rod:

HRC45

YG10.2 &WF25(Taiwan)

Grain Size:0.7um Co:10 % Flexural strength:3200N/mm2

2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
3. Super TiSiN coating, reduce the coeffiction of friction, and improve the tools life much.

	AlTiN	TiAIN	TiSiN	Nano
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	900	800	1000	1200
Friction Coeffient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Blue

4. Each end mill is inspected by Zoller measuring and inspected machine.
5. The following Specification for your refer, We also provide the OEM or ODM service

(Order No)	Cutting	Shank	Flute	A.0.L
	d	D	l	L
R0.5×2×4D×75L×4F	1	4	2	75
R0.75×3×4D×75L×4F	1.5	4	3	75
R1.0×4×4D×75L×4F	2	4	4	75
R1.25×5×4D×75L×4F	2.5	4	5	75
R1.5×6×4D×75L×4F	3	4	6	75
R1.75×7×4D×75L×4F	3.5	4	7	75
R2.0×8×4D×75L×4F	4	4	8	75
R2.5×10×6D×75L×4F	5	6	10	75
R2.5×10×6D×100L×4F	5	6	10	100
R3.0×12×6D×75L×4F	6	6	12	75
R3.0×12×6D×100L×4F	6	6	12	100
R3.0×12×6D×150L×4F	6	6	12	150
R4.0×16×8D×75L×4F	8	8	16	75
R4.0×16×8D×100L×4F	8	8	16	100
R4.0×16×8D×150L×4F	8	8	16	150
R5.0×20×10D×100L×4F	10	10	20	100
R5.0×20×10D×150L×4F	10	10	20	150
R6.0×24×12D×100L×4F	12	12	24	100
R6.0×24×12D×150L×4F	12	12	24	150
R7.0×28×14D×150L×4F	14	14	28	150
R8.0×32×16D×150L×4F	16	16	32	150
R10×40×20D×150L×4F	20	20	40	150

6. Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
7.Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .
8. Payment Term
T/T ,Western Union , MoneyGram,L/C
9.Why Choose Hiboo Tools
Several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest

---
