Wood Veneer Spindleless Peeling Machine Rotary Veneer Lathe Log Peeling Machine with CE

Product Description

Wood Veneer Spindleless Peeling Machine Rotary Veneer Lathe Log peeling Machine with CE
Product Description

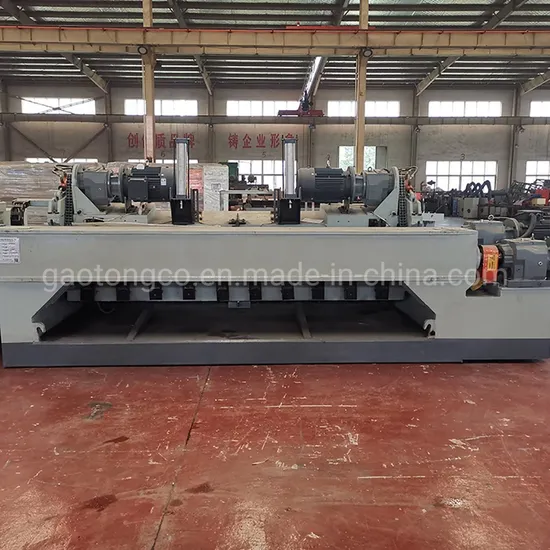

1. Veneer Peeler

1. Veneer peeling machine 4ft
Max peeling length	1300mm
Max cutting diameter	500mm
Thickness range	0.6mm-3.6mm
Core diameter of remaining	30mm
Total power	22.4KW
Line speed	50m/minute
Roller diameter	125Cross roller
Weight	3.5T
Overall dimension	3400x1700x1500 mm
Payment terms	T/T 30%,Balance before leave factory
Delievry time	In 20days

Log conveyor
Log Debarker

Model	GTLD1400/2600
Log dimension processing (D*L)	500*1400 mm
Rotary knife specification (L*W*T):	1500*140*12.7 mm
Diameter of rollers	2*200mm,1*150mm
Line speed	50m/min
Reference output	30m3/day
Hydraulic system power	5.5kw
Roller driving power	11kw,7.5kw
Total power	24kw
Feeding cylinder	800mm*2
Product dimension	4000*1600*1800 mm
Weight	3500kgs
Payment terms	T/T 30%,Balance before leave factory
Delievry time	In 20days

3. veneer stacker

Item	unit	parameter
Veneer size	mm	970X480 mm --1270X880mm
Veneer thickness range	mm	Thinnest 1.0mm--- thickest 4.0mm
Main liner speed	m/min	60m--100M adjust speed
Motor power	KW	Ratary motor 1.5kw servo,convey motor 2.2kw, Lift motor 2.2kw,transfer motor 1.5kw Output motor 2.2KW
Total power	kw	9.6 kw
Gear box model	RV90-100	The main engine adopts worm gear and worm gear box
Remarks	Lengthened artificial sorting secondary veneer platform;Three-level veneer, broken skin automatically throw out;A palletizing veneer;Non-stop and automatic output full stack sheet.

Detailed Photos
Packaging & Shipping
log debarker veneer peeler
Our Advantages
Pre-sale service:
1) Listen to customer needs
2) Provide free preliminary machine design plan and flow chart,choose and supply the most reasonable configuration equipment;
3) Support remote meetings and visit factory remotely;
4)Offer the professional advice to customer to confirm the final selection
5) Support site visits to factory;
In-sale service
1) All equipment is qualified for installation and commissioning before leaving the factory; supports remote video quality inspection;
2) The disassembly and packaging process of all machines before leaving the factory, providing photos, videos, and annotations;
3) Online or offline free training of buyers' operators (China)
4) Assist buyers to install and debug equipment (overseas)
After-sales service
1) 7*24 hours online service; remote real-time video resolution;
2) During the first installation and commissioning process, problems encountered during normal operation should be solved in time;
3) Periodic process inspection and use effect, and timely suggestions for machine maintenance;
4) Lifetime free technical guidance
5) Update the latest industry information in a timely manner.
Factory
plywood production details machine
FAQ
What's your company property ?
We have own factory and trading company . Welcome to visit .
What's your delivery time ?
The delivery time is depend on your quantity of machine , for one proudction line it's around 50 days .
How about your quality control ?
We test the machine for many times before loading and can show you the process by vedio link
Can we viist your factory .
Yes , warmly welcome
What's the MOQ ?
It's one set
Any interested please contact Ms.Linsey Gao

---
