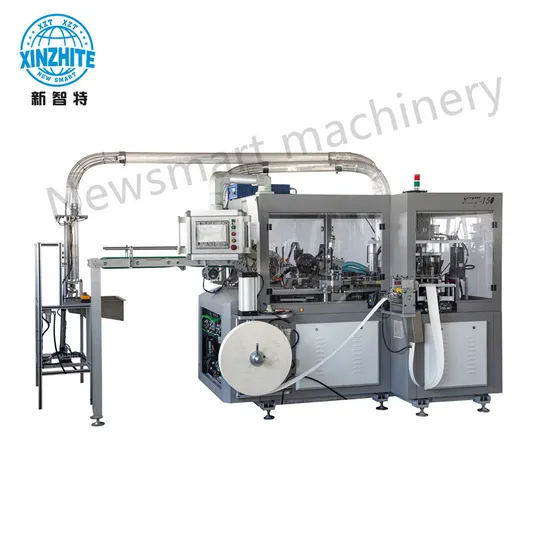

4-16oz CE Approved New Smart Wooden Case Machinery Paper Cup Forming Machine

Product Description

Our Advantages
The conventional mechanical form uses a linkage model, where a problem in one part can cause damage to multiple parts and thus incur high maintenance costs and require a high level of repair skills. Most parts of our machine are controlled independently by servo motors, making it easy to maintain and work stably. The mechanical parts of ordinary machines need to be immersed in oil for a long time and the oil needs to be changed frequently. The cost of oil is expensive. Our machine uses grease lubrication instead of oil, making machine maintenance easier and cleaner. Each part is servo-controlled independently, making the machine works more accurately, and the servo is guaranteed to run trouble-free for at least 8 years. Compared to other machines of similar speed, our machine consumes 11KW while others almost consume 14kW.
Product Parameters

MODEL	XZT-150
Cup size	4-16oz(100-450ml) UP45-95mm; Bottom:35-75mm,Height45-135mm (mold exchangeable) (other sizes can be customized)
Material	170-380GSM single or double PE/PLA coated paper (0.25-0.5mm thickness)
speed	140-160pcs/min
Power Supply	220/ 380V 50Hz.34KW (running consumption is 14KW)
Air Supply	0.6Mpa (running consumption is 0.3Nm3/min) Customers need to prepare air compressor
Weight	3000kgs
Dimension	2460L*1620W*1780H

Sample Show
Certifications
Packaging & Shipping
Company Profile Wenzhou New Smart Machinery Co., Ltd was founded in 2020. We are a technical innovation enterprise that focuses on paper container forming machinery R&D and production. Our engineers have more than 20 years of experience in the paper container-forming machinery manufacturing field. Company founder Mr. Jin Haixiao, also our senior engineer, has rich experience in mechanical design concepts to machine commissioning.
NEWSMART's first generation XZT-150 high-speed paper cup machine has several technical barriers which break traditional machinery technology. We dare to use advanced technology instead of traditional technology and keep innovating for the revolution of industry technology.
Our Service

Pre-Sales Service	After-Sales Service
1. Inquiry and consulting support, 2. Sample testing support, 3. View our Factory.	1. Training on how to install the machine, 2. Training on how to use and maintain the machine, 3. Engineers available to service machinery overseas. 4. Online service is always available.

FAQ Q1- Is your company a factory or a trading company?
A1- We are a factory with more than 20 years of technical experience.
Q2- Where is your factory? How can I visit your company?
A2- Our factory is located in Wenzhou, Zhejiang province, China. It takes about 50 minutes from Shanghai by plane(5 hours by train). All clients are warmly welcome to visit us.
Q3- What is the suitable material for your machines? What size of the cup/bowl you can make?
A3- PE, double-PE Laminated cup paper, composite material, aluminum foil paper, etc. are suitable for our machines. We can make paper cups/bowls from 4oz-57oz.
Q4-What kind of machines do you produce?
A4. Full servo paper Cup making machine, full servo paper bowl-making machine, fully automatic intelligent cup packaging machine.
Q5- What certificates of machine do you have
A5- CE, and more than 10 pieces of Patents of the machine.
Q6- What about the payment term?
A6- 30%T/T in advance, the rest paid before shipment.
Q7- What information should I let you know if I want to get a quotation?
A7- Quantity, detailed size (top diameter, bottom diameter, and height), paper thickness&material.

---
