Threads Making Anchor Bolt Rod Rolling Making Machine Hydraulic Thread Rolling Machine

Product Description

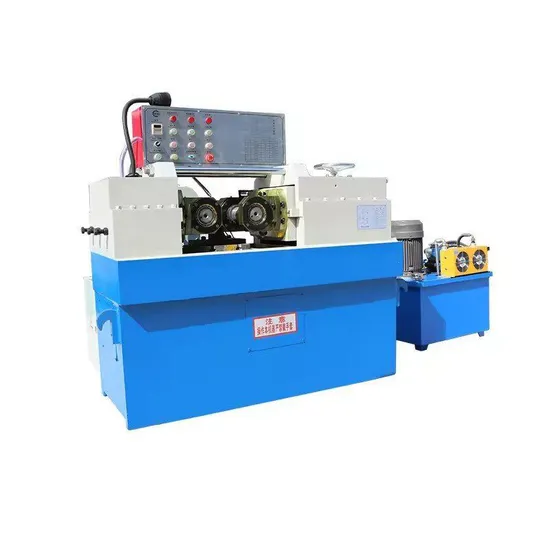

Z28-200 Hydraulic thread rolling machine
Product Parameters

Model	Z28-200	Hydraulic motor	5.5kw
Rolling diameter	10-80mm	Cooling motor	0.12kw
Max width of rolling die	150mm	Max rolling force	200KN
Max outer diameter of rolling die	220mm	Diameter of spindle	75mm
Range of Center distance of die-spindle	150-300mm	Tilt angle of spindle	±10°
Pitch size range(ordinary )	0-8mm	Speed of spindle	20/25/31/41/51/64(r/min)
Weight of machine	2500kg	Size of host machine	1800*1680*1620mm
Rolling motor	11kw	Certificate	ISO9001:2008/CE

Advantages:
1.It can make the thead form of good quality.And it It has the high precision.
2.It can be used to process scerw and rebar.The rebar processed by the machine has the good overall mechanical.It can make the tensile strength increased by 20%-30%,the fatigue strength increased by 40%-60%,corrosion resistance increased by 50%-200%.Mechanical properties of rebar connector reached and more than international standards.
3.It works safe and reliable.It can works all day long,and can save steel and energy.
4.It adopt innovative design and advanced technology,alos it has the high precision and easy to operate.

Detailed Photos
OPERATE PANEL
----
the main system of this machine,
make sliding seat feed and back
ROLLING SHAFT
--
Impact resistant, anti-vibration,
durable and good anti-fouling
ability, strong self-suction
ELECTRIC BOX
--
Adopts high quality parts

Hydraulic thread rolling machine
The cold rolling process of thread rolling is an advanced non-cutting process, which can effectively improve the internal and surface quality of the workpiece. The radial compressive stress generated during processing can significantly improve the fatigue strength and torsional strength of the workpiece. The ideal process of energy saving and low consumption. Two-axis thread rolling machine has strong advantages in hardware construction, automobile and motorcycle accessories, transportation power, standard parts production, etc.

FAQ:
1.For price ,we are professional manufacturer in Hebei province ,we can supply competitive price for you .
2.For pre-sales service ,our sales team will answer all your questions within 24 hours ,welcome you visit our factory to vertify quality .
3.For after-sales service ,we have professional technican to solve your problems within 24 hours ,life time technical support .
4.For packages ,fumigation-free marine wooden box.
5.For payment ,we accept TT,LC ,WEST UNION and etc .
6.For delivery time ,we always have machines in stock .

---
