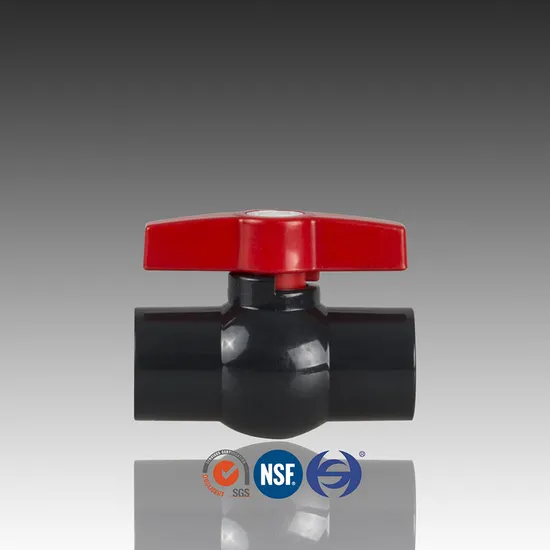

DIN ASTM ISO Standard PVC Compact Ball Valve

Product Description

COMPANY PROFILE
Huasheng Pipeline Technology Co.,Ltd has been in business since 1988 and operates two modern factories of 200,000 square meters, with 30 pipe extruding lines, 80 mechanical processing equipment, 200 injection machines, and 400 employees.
The annual production has reached a sales turnover of USD 30,000,000, annual production capacity has exceeded over 80,000 tons, and storage is over 10,000,000 USD.

Description:
Items Name	PVC Socket Ball Valve
Material	PVC-U
Size	20~110 mm
Color	Light Grey /Dark Grey/Blue/White
connection	Socket or thread
Pressure	PN10/PN16
Power methods	Manual
Standard	DIN, ANSI, CNS, JIS; NPT, BSPT, BS
Certification	ISO14001,SGS,CE, SO9001
Temperature of Media	Normal Temperature
Usage	for water supply, drainage or aquaculture

Advantage:
1.Good price,low installation cost
2.Light material,easy to installation,save time
3.Corrosion resistant,stability
4.The wall is bright and clean
5.No heat transfer
6.Non-conductive,inflaming retarding

(DIN)VALVE
Dimension(mm)
Size(De)	D0	D1	D2	d	T	H	L1	L
20	30.00	19.96	20.24	15.00	17.00	60.00	70.00	74.00
25	35.00	24.95	25.24	20.00	19.50	68.00	80.00	85.00
32	43.00	31.95	32.25	25.00	23.00	80.00	92.00	98.00
40	52.00	39.95	40.28	30.00	27.00	90.00	112.00	112.50
50	63.00	49.94	50.33	34.00	32.00	105.00	114.00	128.00
63	76.00	62.93	63.34	45.00	38.50	123.00	134.00	154.00
75	90.00	74.93	75.35	55.00	44.50	156.00	190.00	176.00
90	105.00	89.93	90.38	67.00	52.00	178.00	220.00	203.00
110	128.50	109.92	110.42	93.00	62.00	208.50	250.00	260.00

Packing Details
No	Description	Size	Pcs/ctn	Weight (g/pcs)	Length (cm)	Width (cm)	Height (cm)
1	Socket ball valve	De20	200	91.11	34.5	32	32.5
2		De25	160	122.09	36.5	31.5	37
3		De32	90	207.27	42.5	29	32
4		De40	60	317.02	39	29	36
5		De50	40	485.09	45	32	27.5
6		De63	20	754.07	38.5	29	32
7		De75	15	1129.05	50.5	44.5	25.5
8		De90	10	1980.04	54	40.5	29.5
9		De110	6	3140.80	51	37	35

Application Area:
1. construction, buildings, swimming pool, hot spring;
2. food&beverages, glucose, citric acid, starch, soda;
3. microelectronic industry, PCB, TFT-LCD, LED, wafer;
4. water treatment, clean water, waste water;
5. chemical, Chlor Alkaline, Copper, Aluminium, Steel; 6. Medical;

---
