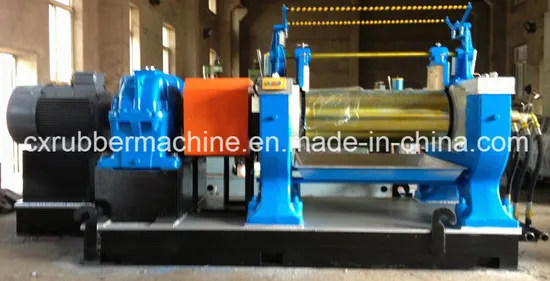

High Quality Rubber Open Mixer/Two Roll Open Mixer

Product Description

high quality rubber open mixer/two roll open mixer 1. Rollers: the roller adopts chilled cast iron alloy (LTG-H) with 75-80 HS ,after quenching and precision processing with long service life,so the surface is hard and wearable;it is harder than others the commom is 72HS.
2. Emergency Stop Device:The machine is also equipped with emergency stop buttons or emergency pull rod. When an emergency happens, just press the emergency button or pull the pull rod,the machine will stop immediately. It is safe and reliable;
3.Motors: We always use OMRON,SIMENS ect brand electric parts or you can choice the ordinary brand.all the motor is high quality and effiency,save energy,low noise,small vibration.
4. Overload: This open mixing mill has overload protection devices, Machine will be stopped automatically, if overloaded;
5. Gear Box:The transmission system adopts hardened reducer,which has a compact structure with higher transmission efficiency,lower noise and longer service life(ZQ reducer and planetary reducer is optional);
6. Bearing Bush:Double Row Spherical Roller Bearing can save energy by 20-30%(Nylon Bushing and Brass Bush is optional);
7. Structure:The base and frame are welded and treated by annealing for stress relieving;
8. Sealing Device:The seal structure with special design can eliminate the leaking phenomenon of lubricating oil;
9.Cooling system:circulation of steam and tap water can be through rollers to control the temperature
10.Safe Electrical Parts: All electrical connections are safe:short circuit is not possible by any means.
Configurations of rubber mixing mill
1)Gap Adjustment Mode:Manual or Electrical (by motor)
2)Lubricating Method:Manual or Auto;Grease or Thin oil
3)Emergency stop device:Pull Rod and Emergency button
4)Roller bearings: Nylon Bushing or Copper Sleeve or Spherical Roller Bearing
5)Reducer(gear box) type:ZQ type reducer or hard-teeth(hardened) reducer or planetary reducer.
techincal parameter:

	Item	XK-160	XK-250	XK-360	XK-400	XK-450	XK-550	XK-560	XK-660	XK-710
Roll diameter	mm	160	250	360	400	450	550	560-510	660	710
Roll working length		320	620	900	1000	1200	1500	1530	2130	2200
Front roll linear speed	r/min	9	16.3	16.7	19.3	21.8	22.5	27.2	28	31.9
Speed ratio of rolls		01: 01.4	01: 01.1	01: 01.3	01: 01.3	01: 01.3	01: 01.2	01: 01.2	01: 01.2	01: 01.5
Max roll space	mm	4.5	8	10	10	12	16	15	0.5-15	0.5-15
Compound feeding capacity	kg	1-2	10-15	20-25	18-35	50	50-65	50-65	165	190
Motor power	kW	5.5	18.5	30	45	55	110	90	240	280
Dimensions(L× W× H)
L	mm	1133	2722	4200	4920	5405	6646	6270	7280	8185
W	mm	920	1115	1780	1780	1740	2736	2282	3400	3910
H	mm	1394	1345	1760	1800	1790	2105	2000	2530	2270
Gross weight	T	~2	~3.2	~6.5	~8	~11.4	~22	~22.5	~49	~51

RUBBER MIXING MILL FAQ :
1,Are you manufacturer?
Yes,we are BV approved rubber products manufacturer in China.
2,Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
4,What's your payment term?
Common is 30% deposit by T/T,the balance paid against shipping documents.
Or L/C at sight.
5,Are you near to Qingdao airport?
Yes,only within 1.5hours.
And within 1 hour to Qingdao sea port.
50 minutes to Qingdao Railway Station.
6,Do you have any certificate of your products?
Yes, CE, BV, SGS
7.We,Qingdao Create Trust Industry Co., Ltd.make good quality rubber machine, from materials to producing, we use the good quality material, complete management system, also excellent after sale service, we hope to be one reliable factory for you! ---1.It has specialized in rubber machinery for nearly 30 years;
---2.It is a 100% real manufacturer, rather than a trading company;
---3.We give 36 months quality guarantee and long-term technical support.

---
