Horizontal Plastic Pallet Injection Molding Machines Plastic Molding Machine Mold Injection Machine

Product Description

Horizontal Plastic Pallet Injection Molding Machines Plastic Molding Machine Mold Injection Machine
Product Parameters

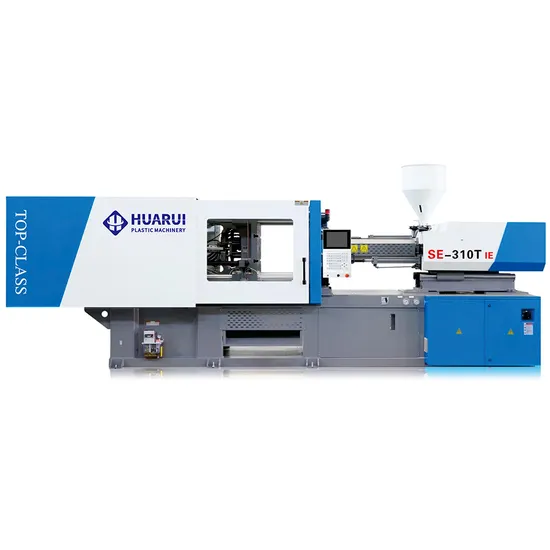

Se-310T/IE Plastic Injection Molding Machine Information
Item		Unit		AA			A
Screw diameter		mm		45			50
Theoretical shot volume		cm³		398			491
Shot weight (PS)		g		362			447
Shot weight (PS)		oz		12.8			15.8
Length/Diameter ratio		L/D		22			22
Injection pressure		Bar		2469			2000
Injection rate		cm³/sec		200/350
Max.screw speed		rpm		400
Clamping force		KN		3100
Max.daylight		mm		950*880
Open stroke		mm		610
Space Between Tie-bars		mm		670*620
Min mould dimension		mm		270
Mould thickness range		mm		670
Ejector force		KN		90
Ejector stroke		mm		170
No.of ejector pins		unit		13
Motor power		KW		55
System pressure		MPa		175
Heater input power		KW		20
Oil filling capacity		L		400
Machine size		M		6.5*1.6*2.3
Net weight		KG		11000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
