Model
| SIP-410WDC/SIP-410WDCPOE/SIP-420WDC/SIP-420WDCPOE/SIP-430WDC/SIP-430WDC POE
|
Power supply
| DC12—24V / POE
|
Rated power
| 10W/20W /30W
|
Constant Impedance
| 8Ω
|
Sensitivity
| 91dB±3dB
|
Frequency Response:
| 60-16000Hz /120-18000Hz
|
Decoding
| OPUS 48kHz,mp3 44.1kHz,G.722 ADPCM 16Khz, G.711 PCMU 8kHz ,G.711 PCMA 8kHZ
|
Network Protocol
| SIP,ONIF,HTTP,IPV4,DHCP,RTSP,RTP,TRCP,TCP,UDP,ARP,FTP,TFTP,NFS,NTP
|
Network interface
| 10/100 Base-TX, RJ45
|
VoIP
| Support SIP protocol for integration with VoIP systems, integrated with SIP/PBX. Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. Support SIP features: secondary/backend SIP server,IPv4(IPv6 future) Support codecs:OPUS,G711U,G711A ,GSM,MP3, WAV
|
Drive unite
| 4’’*1+ 0.5’’*1/4’’*2+0.5’’*1/4’’*3+0.5’’*1
|
Materials
| Aluminum +ABS
|
Package Dimensions (W*D*H mm)2PCS
| 290*200*335/310*220*340/330*240*540
|

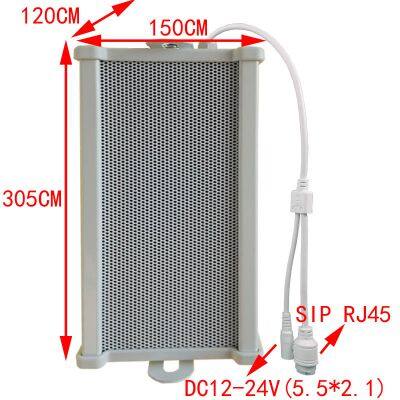

Machine Dimension
| 155*105*305mm / 155*105*320/155*105*530
|
Gross Weight
| 1.53kg /2.2kg/3kg
|
Net Weight
| 1.25kg/2kg/2.62kg
|
