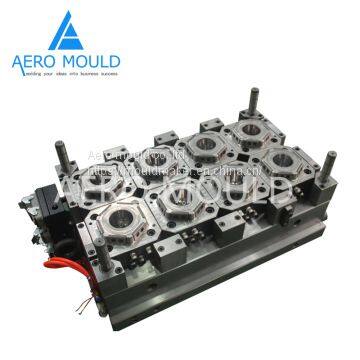

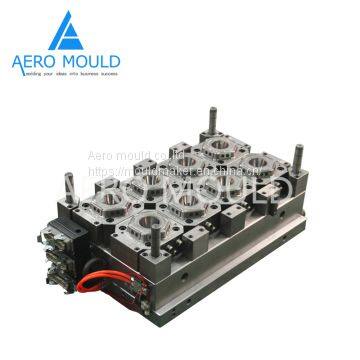

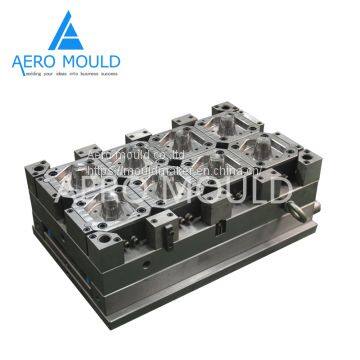

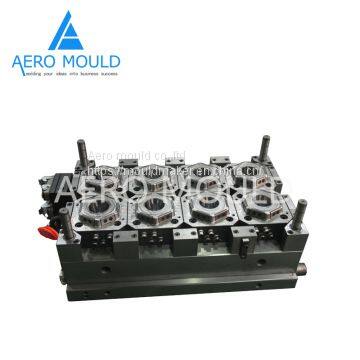

| Name | 8 cavity airline mug |
| Cavity | 8 |
| Material | RCP |
| Mould steel | core&cavity S136 with 48-52HRC Base P20 with 28-32HRC |
| Runner system | Hot runner valve gate |
| Product weight | 6.9 gm |
| Product size | upper dia 70mm Bottom dia 46mm Height 62mm wall thickness 0.4mm |
| Eject way | stripper+air |
| Mould running | fully automatically |
| Mould size | 1082*1064*436mm |
| Cycle time | 6.5 seconds |
| Customized | Ok,please contact with us |
