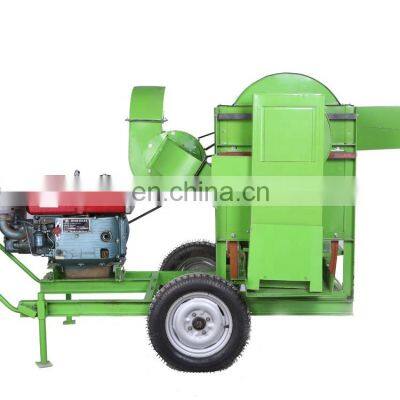

soybean thresher/Soybean Sheller/Bean Threshing Machine//0086-13673629307
Application and main features :
1.Component: racks, concave screen, drum, cover, main fan, the second suction fan, motor, or(diesel), vibrating screen, traction-driven device component,
2.it is used to shell many kind of grains, such as: sorghum, millet, bean, soybean,paddy,wheat , rice and so on
Working principle :
The crop through the functions of the friction ,extruding,crash,shaking between the rattler's rack and sieve assembling unit, making the seed detaching from the stalk, then discharge from the sieve, the stalk is casted by the centrifugal role of the rattler, then finishing the threshing.
Brief introduction of the wheat thresher:
1. The wheat thresher is made up of ranks, concave screen, drum, cover, main fan, the second suction fan, motor (or diesel), vibrating screen, traction-driven device.
2. The small wheat thresher is mainly used for wheat, rice, soybean, sorghum, millet and other crops' threshing.
3. The small wheat thresher is full-feeding type. It has simple structure and is safe, reliable.
Parameters :
model
| TZTD-135
| TZTD-125
| TZTD-100
| TZTD-70
| TZ-50
|
Capacity
| 1200-1500kg/h
| 800-1200kg/h
| 750-1000kg/h
| 550-600kg/h
| 350-400kg/h
|
Measurement(mm)
(leng x width x height)
| 2400x2670x1530
| 2400x2480x1530
| 2300x2000x1500
| 1070x2060x1340
| 1400x900x1050
|
Power(kw)
| 13-15
| 11-13
| 7.5-11
| 7.5
| 5.5-7.5
|
gross weight(kg)
| 500
| 450
| 420
| 260
| 150
|
rotating speed(r/min)
| 1000
| 1000
| 1060
| 1200
| 1400
|
wrap angle of the concave
| 240
|
Gap(mm)
| 20 +5/-2
|
Rotating speed of the air blower(r/min)
| 2500
| 2400
| 2500
|
amplitude of the vibration sieve
| 40
| 20
| 14
|
frequency of the vibration sieve(HZ)
| 240
| 320
| 560
|
