Concrete Pumping Ready Mix Convey Concrete Diesel Powered

Product Description

Concrete Pump Electricity or Diesel Powered
Deliver concrete 120m in height and 500m in length
World famous brand main parts, Remote control, Easy to move
Product Description

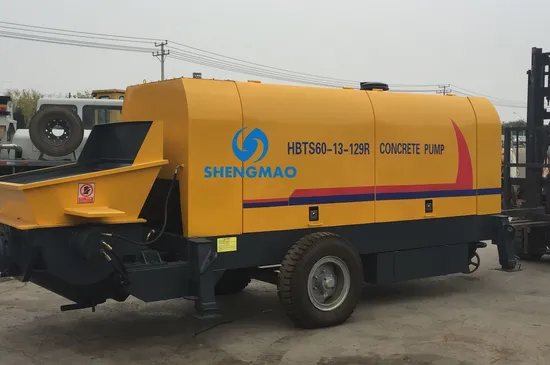

HBTS60R Concrete Trailer Pump
1. Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components' life is prolonged greatly. This is convenient for judging and removing trouble; 2. The electric control system is simplest, the element quantity is fewest and its reliability is highest. The wire remote equipment is convenient for operation far away;
3. The design of hopper and S valve and so on adopt I-DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage;
4. The hydraulic circuit will take high oil into double distributor, and then the lubricating part can obtain hydraulic oil. It ensures the lubrication of the concrete cylinder's piston and other parts and prolongs the life of piston and other seals;
5. The radiator equipment makes the working oil temperature of hydraulic system below 70ºC and makes the machine in normal status.

Item	Unit	HBTS60R
Max. theo. concrete output (L/H)	m3/h	80/40
Max. concrete pumping pressure(L/H)	MPa	13/7.6
Distribution valve type		S Valve
Concrete cylinder (diameter*stroke)	mm	Ф200*1,650
Hopper capacity*feeding height	L*mm	680*1,400
Outlet diameter	mm	Ф180
Inside diameter of delivering pipe	mm	Ф125
Dimensions (L*W*H)	mm	5,800*2,000*1,750
Total weight	kg	5,800

.

Model	BS30	BS30R	HBTS40	HBTS40R	HBTS60	HBTS60R	HBTS80	HBTS80R
Power supply	electric	diesel	electric	diesel	electric	diesel	electric	diesel
Capacity	30m³/h	30m³/h	40m³/h	40m³/h	60m³/h	60m³/h	80m³/h	80m³/h
Motor or diesel engine	56kw	37kw	45kw	82kw	90kw	110kw	110kw	129kw
Max. Aggregate Diameter	40mm	40mm	40mm	40mm	40mm	40mm	50mm	50mm
Steel pipe diameter	80mm	80mm	125mm	125mm	125mm	125mm	125mm	125mm
Engine Brand	Rongcheng	Weichai	Rongcheng	Weichai	Rongcheng	Weichai	Rongcheng	Weichai
Theoretical pumping distance (horizontal/vertical)	400/120m		500/120m		500/120m		800/160m

Our Service

Pre-Sales Service * Providing solution for your construction project; * Providing design drawing as per your requirements; * Providing professional quotation for your inquiries.

After-Sales Service * Machine installation and test running; * Operators trainning and spare parts supply; * Machine problems solving (by phone or job site visiting).

Packaging & Shipping

Our Projects

Product Parameters

HBTS10R Diesel Concrete Pump Capacity: 10 m3/h	HBTS20R Diesel Concrete Pump Capacity: 20 m3/h
HBTS40R Diesel Concrete Pump Capacity: 40 m3/h	HBTS60R Diesel Concrete Pump Capacity: 60 m3/h
HBTS80R Diesel Concrete Pump Capacity: 80 m3/h	HBTS90R Diesel Concrete Pump Capacity: 90 m3/h
Concrete pump with crawler Capacity: 30m3/h to 90m3/h Both diesel type and electric type are available	Concrete pump with trailer Capacity: 30m3/h to 90m3/h Both diesel type and electric type are available

---
