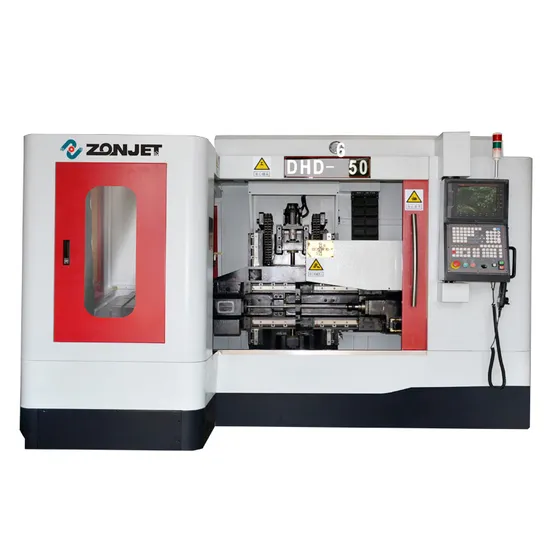

Depth 600 CNC Deep Hole Boring Machine for Mould Making (ZJA06-0606)

Product Description

Technical Specifications of ZJA06-0606
Drilling aperture	Drilling depth	Main spindle vertical	Table horizontal	Size	Floor space require
∮3~20mm	600mm	650mm	650mm	500×800mm	4200×2600mm

The base of machine tool is made of resin sand cast, which is twice qualitative treated. There are three main parts: base, column and entering sliding table. Imported ball screw and guide rail are installed in every part, and it runs by the high-precision Servo Motor.
The base includes operating platform, Servo Motor, lubricating system, protecting cover, etc. The operating platform moves along the direction of X axis horizontally.
The column includes Servo Motor, counterweighing, etc. The entering sliding table moves up and down along the direction of Y axis.
The sliding table includes main axis and its motor gears, Servo Motor, anti-hunting support for gun drill and its automatic regulating device, gun drill guide and chip conveyor, stabilizer of hydraulic system, etc. The gun drill moves along the direction of Z axis horizontally.
The main axis part consists an axis kit. The main axis is driven by the gear belt wheels and make rotational motion. There is an imported high-speed and high-pressure rotary connector behind the main axis, in order to ensure no leakage of cutting oil when the main axis runs in high speed. There is also hydraulic overload protecting function, and the components can be well protected in case of any improper operation.
It is a special deep-hole drilling operating system, which is powerful, simple operating, stable and durable. Main advantages:

Multi - segments processing automatically: It will adjust the feed rate automatically according to the processing schedule.

Logical control processing: The processing situation is monitored and the processing specification will be adjusted automatically if any unusual.

The highly sensitive monitoring equipment will sound a alarm if any unusual errors and stop processing, which is safe and found intuitively.

Multiple operation. There are optional modes: man-machine dialogue mode, machine programming mode and remote transmission mode.

Product application
Deep hole drilling machines are mainly used in the industries as following:
-Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc.
-Hydraulic machinery industry: valve, distributor and pump,etc..
-Automotive industry: cylinder, fuel supply system and other parts
-Aerospace industry: the propeller, landing gear and other parts.
-Chemical and generator industry: heat exchange parts.

Company Profile
Nanyang Zonjet CNC Technology Co., Ltd, located in Nanyang City, Henan Province, is one of the most important industrial projects in Nanyang. It is a garden style modern factory, covering an area of 5,000 square meters, including 3,000 square meters for productive land. There are 2 production bases in Nanyang, Henan and Dongguan, Guangdong. Integrating product development, manufacturing, customer service and all the resources, there is a core value system of full rage of service in Zonjet.
Zonjet CNC Technology Co., Ltd, focusing on area of CNC deep-hole drilling, has been developing in a high speed since established, and Zonjet has become a very effective brand name in the industry. Taking the need of customers as direction for product design and positioning, the function and specification of our products meets the demands of all users in different areas. Customizing products also creates the highest economic benefits for users. Main products: three-axis CNC deep-hole drilling machine tool, four-axis multifunctional deep-hole drilling machine tool, five-axis drilling and milling center, six-axis drilling and milling machine tool, tube plate machine tool, shaft deep-hole drilling machine tool and other deep-hole drilling machine tools for special industries.

---
