Sand Core Shooting Machine with Nylon Conveyor (JD-361-Z)

Product Description

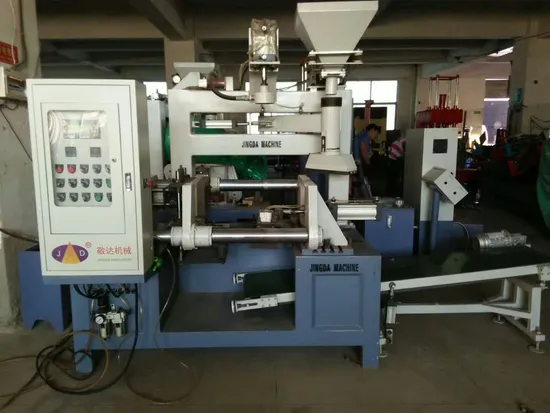

JD-361-Z Automatic Core Shooting Machine
This is a kind of sand core shooting machine. You can choose coated resin sand(dry) or furan resin sand(wet). Shoot the sand into the mold cavity, and through the heating of the mould, it could make out the sand mould or the shell mould at the soonest.
Details:
Device: PLC Control
Operation Driven by air pressure
Operating functions: Manual, semi-auto, full-auto(with conveyer belt)
Two optional sand state: Coated resin sand(dry). Furan resin-sand(wet)
Electric heating: Automatic thermostat (dynamic mode, static mode can be an independent temperature control)
Clamping stroke: 300mm
Top lock stroke: 30mm(dynamic mold is in mechanical type, static mould is in penumatic type)
Maximum center distance of abrasive perforating: 320mm
Working pressure: 0.5-0.7mpa
Theoretic time for full-round operation: 30-60 seconds
Theoretic maximum quality of sand core: 400kgs
Dimensions(L*W*H) 2700mm*1280mm*2000mm
We also have automatic core shooting machine JD-361-A (with conveyer belt and more practical)and JD-361-B (without conveyer belt and cheaper) for your consideration.
On technology, we constantly innovate, and strive to high-tech and high quality;
On the process, we strive for perfection, breakthrough tradition and strive for excellence;
On management, we emphasize science, pursue internationalization management concept;
On the service, we adhere to the principles, advocate the unique principle of "customer first";
Company tenet: "carefully manufacture, meticulously design, sincerely serve" for the purpose.

---
