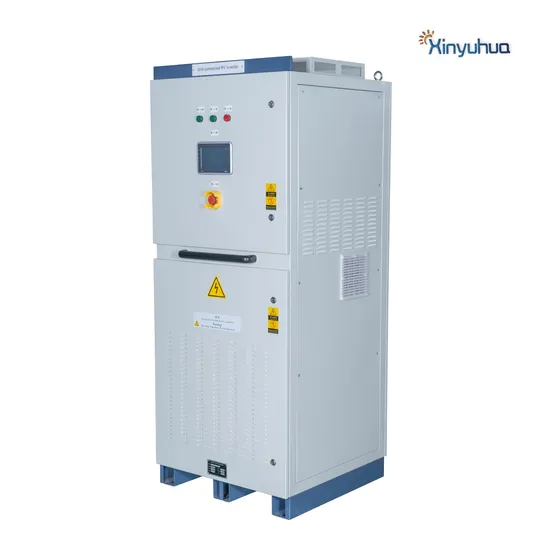

Xinyuhua 1kw/48V 5kw 8kw 10kw Inverter Smart Solar Hybrid Inverter with Low Frequency 12kw Hybrid Solar Wind Inverter

Product Description

Product Parameters

Type		XNSA48 -1KD	XNSA48 -2KD		XNSA110 -3KD	XNSA220 -5KD		XNSA220 -10KD	XNSA48 -5KD	XNSA220 -10KD	XNSA220 -30KD
DC input	Input rated voltage	48 Vdc			110 Vdc	220 Vdc			48AVdc	220Vdc
	Input rated current	25.4A	50.8A		30.3 A	25.2 A		50.5 A	127A	50.5 A	153A
AC output	Output rated capacity(KVA)	1.0	2.0		3.0	5.0		10	5.0	10.0	30.0
	Output rated power	0.8 kW	1.6 kW		2.4 kW	4.0 kW		8.0 kW	4.0kW	8.0kW	24 kW
	Output rated voltage and frequency	220 Vac,50Hz
	Output rated current	4.5 A	9.0A		13.6 A	22.7 A		45 A	7.6 A	15.2 A	45.3 A
	Output voltage accuracy	AC220 V± 3%
	Output frequency accuracy	60 Hz±0.05
	Waveform distortion	≤3%
	Dynamic response(load 0↔100%)	5%
	Power factor	0.8
	Overload	150%,10s
	Crest factor	3:1
	Inverter efficiency	82%			90%				82%	90%
Dielectric strength(input and output)		1500 VAC,1minute
Noise(1meter)		≤50dB
Temperature		-25ºC~+55ºC
Humidity		0-95%,No condensation
Altitude(m)		≤5000meters(when over 1000 meters according to GB/T3859.2 reduce the using amount)
W*D*H(mm)		482*405* 133		482*420*223			600*400* 700		500*500* 860	580*520* 1200	650*580*1500
Protection		Input reverse connection protection, input under voltage protection, input over-voltage protection, output overload protection, output short circuit protection, overheat protection

Model		XNSA220-50KS	XNSA220- 100KS	XNSA480- 200KS	XNSA480- 300KS	XNSA480- 500KS	XNSA480- 800KS	XNSA480- 1000KS
DC input	Input rating voltage(Vdc)	480
	Input rating current(A)	127	253	462	694	1157	1851	2314
	Input DC voltage allowing range(Vdc)	420~800
AC output	Output rating capacity(KVA)	50	100	200	300	500	800	1000
	Output rating voltage and frequency	AC380V/220 Vac, 50Hz(Three-phase four-wire)
	Output rating current(A)	75.6	151.5	303.9	455.8	759.7	1215.5	1519.4
	Output voltage precision(V)	AC380V±3%
	Output frequency precision(Hz)	50/60hz±0.05
	Wave distortion(THD)	≤3%
	Dynamic response	5%
	Power factor(PF)	0.8
	Overload ability	150%,10 seconds
	Crest factor(CF)	3:1
	Inverted efficiency	92%
Insulation strength		1500 Vac,1minute
Noise (1meter)		≤55dB
Using condition temperature		-25ºC~+55ºC
Humidity		0-95%,non-condensing
Altitude (m)		≤6000
Dimension(W*D*H)mm		800*600*2260		1000*800*2060		2000*800*2060	5400*600*2260
Weight (Kg)		600	1100	1500	1600	2000	3000	4500
Protection function		Input reversing protection,input low-voltage protection,output over-load protection,output short-circuit protection, over-heat protection

Product Description
Off-grid PV power inverter
1.Using IGBT from Mitsubishi or Infineon company as the power components
2.Using American ATEMEL company microprocessor as figure controller
3.Perfect protection and warning functions
4.Circuit frame compact,Max. Efficiency≥94%
5.With wide input voltage range
6.RS232/485 communication,multi communication interface can be selected
7.Big-screen English LCD, perfect display, interface-friendly
1000kw.1500kw . 3000kw on and off grid inverter
1.Main circuit adopt USA TI company DSP chip and IGBT from Mitsubishi,driving
protection is from Japan Mitsubishi chip,the part of off-grid output adopt isolation transformer,safe and reliable.
2.With SPWM pulse width modulation technology,pure sine wave output,power factor
approaches 1,low current harmonic content
3.MPPT(Maximum Power Point Tracking)Technology
4.Inverting current close-cycle control,power to control and adjustable
5.With wide input voltage range to adapt to the needs of different occasions
6.Have a full range scheme of power protection and perfect self-detection and self- protection function.When there's something wrong with the system,it will automatically stop working.
7.Close circuit structure, the maximum efficiency> 95%
Hot Product

Company Profile

Jinan Xinyuhua Energy Technology Co., Ltd. Firmly grasps the direction of "low-carbon economy and green development", takes "building a first-class new energy enterprise in China and even in the world" as its strategic goal, carries forward the enterprise spirit of "harmony, innovation and pursuit of excellence", strives to contribute clean energy, improve the power structure and fulfill social responsibility. A multi field, large-scale and powerful new energy leading enterprise constantly shows its unique charm and elegant demeanor. It will continue to serve the country with industry, repay the society with value, base on the market with reputation, and gallop into the future with strength, and advance hand in hand with all walks of life to create brilliance together!

The company is committed to the application of new energy industry in industrial, civil, military and other fields. Its products include solar system, wind turbine system, marine shore power supply system, DC power supply, rectifier, voltage and frequency stabilizer, military power supply, Jinan Xinyuhua Energy Technology Co., Ltd. Firmly grasps the direction of "low-carbon economy and green development", takes "building a first-class new energy enterprise in China and even in the world" as its strategic goal, carries forward the enterprise spirit of "harmony, innovation and pursuit of excellence", strives to contribute clean energy, improve the power structure and fulfill social responsibility. A multi field, large-scale and powerful new energy leading enterprise constantly shows its unique charm and elegant demeanor. It will continue to serve the country with industry, repay the society with value, base on the market with reputation, and gallop into the future with strength, and advance hand in hand with all walks of life to create brilliance together!

Our business marketing network covers Europe, North America and Asia Pacific, covering more than 50 countries, including Singapore, Indonesia, Philippines, Bangladesh, Germany, Italy, Belgium, the United States, Spain, Australia and other major markets. For each new member of Xinyuhua, new energy is not only a business opportunity in the sunshine, but also a way of life to create a green future. We uphold the concept of "sunshine quality, serving the world", and share with you the joy of the growth of green energy in the world under the sunshine!
Our Advantages
Why Choose US?
• Professional team for after-sale service 7*24• Experienced R & D team and profesional sales team• OEM & ODM service, we will evaluate, design and produce your customized products• Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.
Warranty:
As our customer, you enjoy the following services:
(1)One year repair for free of the complete machine;(2)technical Support(3) Within 24 hours for respond after receiving notification;(4) Cost maintenance forever.
Customer on-site photos
Packaging & Shipping

FAQ
1. Q:Are you manufacturer?
We are a professional power supply manufacturer with high reputation in this field.
2.Q.Do you have certificates for your products?
Yes,we have CE, standard certifications.
3. Q:Can we print our logo?
We can print your logo on both power adapter and package.
4. Q: How is your production management and quality control system?
All our product process follows up ISO9001. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

---
