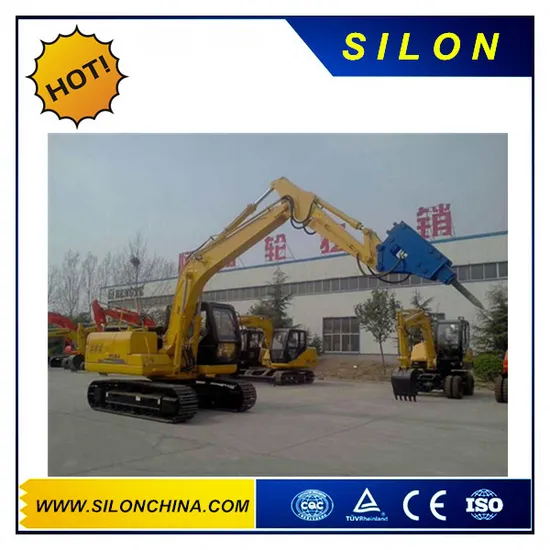

Top Brand 22.35ton Excavator (XE215CLL)

Product Description

ydraulic crawler excavators heavy machinery XE215CLL
1. Operation weight: 22350kg
2. Standard 0.5m3bucket
3. Max. Digging height: 13250mm
4. Original KAWASAKI hydraulic system
5. Engine: Japan 106.5kw
6. Original KAWASAKI electronic system
7. Cabin with A/C, ROPS/FOPS
8. With break hammer
With LOOM BOOM of digging depth of 11690mm.
The imported Japan engine with original packing has strong power, and can meet the requirements of high-efficient work.
A. Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
B. Low emission meets the Europe II standard.
C. The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
D. The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
E. Automatic preheating system improves the working capacity in the low temperature.
F. Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
G. Restart prevention system effectively avoids the misoperation, and improve s the use security of the machine.
Technical Parameters

Model		Unit	XE215CLL
Operating weight		kg	22350
Standard bucket capacity		m³	0.5
Engine	Engine Model	/	BB-6BG1TRP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	×
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	106.5/1950
	Max. torque/speed	N.m	551/1600
	Displacement	L	6.494
The main performance	Travel speed	km/h	5.5/2.8
	Swing speed	r/min	12.2
	Max. gradeability	/	≤35
	Ground pressure	kPa	36.2
	Max.Bucket digging force	kN	78.7
	Max.arm crowd force	kN	40
	Max.traction force	kN	179
Hydraulic system	Main pump	/	2 Plunger pump
	Rate flow of main pump	L/min	2×206
	Max pressure of prime relief valve	MPa	32.3/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	28
	Max pressure of pilot system	MPa	3.9
Oil capacity	Fuel tank capacity	L	360
	Hydraulic tank capacity	L	220
	Engine lubrication	L	25
Overall dimensions	A Overall length	mm	12050
	B Overall width	mm	3190
	C Overall height	mm	3150
	D Overall width of upperstructure	mm	2710
	E Track length	mm	4255
	F Overall width of undercarriage	mm	3190
	G Crawer width		800
	H Track length on ground	mm	3462
	I Crawer gauge	mm	2390
	J Clearance under counter weight	mm	1060
	K Ground clearance	mm	470
	L Min.tail swing radius	mm	2750
Working range	A Max. digging height	mm	13250
	B Max. dumping height	mm	10942
	C Max. digging depth	mm	11690
	D 8inch horizonal digging depth	mm	---
	E Max. vertical wall digging depth	mm	11200
	F Max. digging reach	mm	15394
	G Min. swing radius	mm	4835
	Angle of arm deflection	Degree

---
