Factory Price Hotsale Arch Roof Curved Sheet Roll Forming Machine with CE Approved

Product Description

Product Description

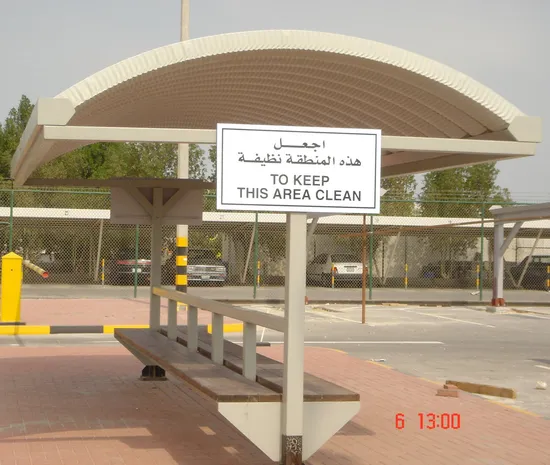

BH-914-650, the Arch Building Roll Forming Machine is a mobile plant, which can directly be produced on worksite, effectively lowering the cost, shorting the construction period and improving the efficiency of engineering. Clients choose suitable machines according to different geographical conditions, different climatic environment, and different spans. The project is widely used in large-scale and mid-scale industrial construction, such as factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre and so on.

Bohai Arch Roof Roll Forming Machine

Technical Parameter 914-650

Production Name	Bohai Arch Roof Roll Forming Machine
Size	8900mm X 2230mm X 2300mm (With Single Axle 4 Tires)
Total Weight	About 10 Ton
Thickness of Bending Leaf	10mm thickness, processed by CNC
Cutting Blade	12CrMov Material, Heat Treatment
Cutting Type	Mechanical Cutting
Forming Type	Roll-Formed and Length-Set Cutting
Power	Total Motor Power : 17.5KW Main Motor Power : 7.5KW Bending Power : 3.0KW+1.5KWx2 Cutting Power : 4.0KW
Seaming Power	1.1KW+1.1KW
Roller Material	45# High-Quality Steel, Quenched HRC 55~65, Hard Chrome Plating
Shaft Material	45# High-Quality Steel, Galvanized
Stand of Molding	13+1 Steps
Feeding Width	914mm
Effective Width	650mm
Using Rate	71.1%
Thickness Coil	0.5-1.6mm
Speed	Forming Part : 15m/min Bending Part: 13m/min Seaming Part: 6m/min
Suitable Span	4-26m
De-Coiler	Inner-Diameter of Coil : 450mm ~ 650mm, Max Width of Coil : 914mm ~ 934mm Load : 10Ton

Related Production

Model	Feeding Width	Effective Width	Thickness Coil	Largest Span
BH-600-300	600mm	300mm	0.5-1.6mm	30
BH-600-305	600mm	305mm	0.5-1.6mm	28
BH-914-400	914mm	400mm	0.5-1.6mm	40
BH-914-610	914mm	610mm	0.5-1.6mm	38
BH-914-650	914mm	650mm	0.5-1.6mm	26
BH-914-700	914mm	700mm	0.5-1.6mm	22
BH-914-750	914mm	750mm	0.5-1.6mm	14
BH-1000-610	1000mm	610mm	0.5-1.6mm	42
BH-1000-680	1000mm	680mm	0.5-1.6mm	38
BH-1000-700	1000mm	700mm	0.5-1.6mm	30
BH-1000-750	1000mm	750mm	0.5-1.6mm	24
BH-1000-800	1000mm	800mm	0.5-1.6mm	18
BH-1200-800	1200mm	800mm	0.5-1.6mm	40
BH-1220-800	1220mm	800mm	0.5-1.6mm	42
BH-1250-800	1250mm	800mm	0.5-1.6mm	45

Advantages of BH-914-650
1. The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.
2. The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.
3. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument.
4. Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement.
5. Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler.
6. Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.

Company Profile
Yingkou Bohai Machinary Equipment Manufacture CO. Ltd is a source factory who has over 20 year's experiences in this industry. Now we have professional technicians, advanced pruduct equipment in workshop, loyal exporting team and responsible aftersale service. All parts are produced by us, which can reduce the cost of the product, which also helps our prices to be very competitive in the market.

Further Service for Projects
Certifications

Packaging & Shipping
1. One 40 GP Container to load one set rolling machine with Decoiler.
2. Main Machine Body and Decoiler is loaded naked(Tighten to container with steel wire rope.)
3. Spare parts and tools used in projects are packed in tooling boxes.
There is still some space in the container besides the machine & Spare Parts, we can load the raw materials such as Colored Steel Sheet Coils or Galvanized steel Coils or other building machines the customers need. In this way, it could make full use of the container space and save the customers transportation fee.
Delivery Time: 7 days if there is stock. If there is not stock, 30 working days after we received the prepayment.

FAQ
Q: Can you make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.Q: What is your service?
A: We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.
Cooperation

Step 1: Tell us your requirements.

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative.

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production.

Step 5: Factory examine goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping.

Step 7: Handing shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.

Step 9: Provide overseas service for clients.

---
