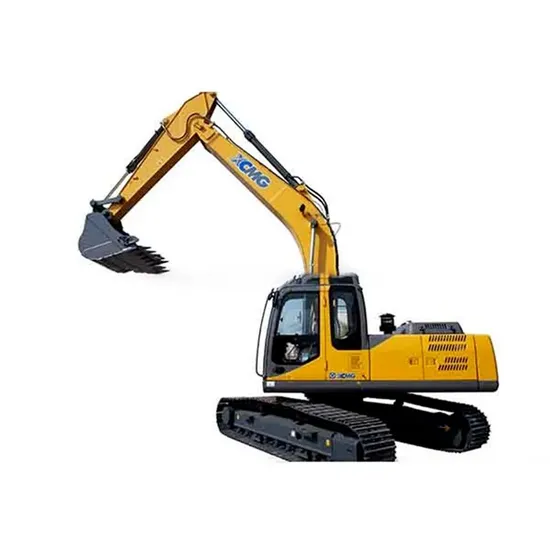

Hot Sale Brand New Crawler Excavator Xe85c Chinese Small Excavator

Product Description

Product Description
The complete machine is mainly used for landscaping, urban construction, pipeline laying, river dredging and other working conditions. The complete machine adopts an turbocharged engine, featuring low noise and sufficient low-speed torque reserve. Its load sensitive hydraulic system can have the complete machine able to provide lower energy consumption, better handling and easily available fine operation.

The new type of electric control system adopts a color large-size screen able to offer complete instrument display. In addition, this machine is also equipped with the standard function of "automatic idling" able to effectively reduce the fuel consumption and environmental noise.

The newly-reinforced work device, reinforced chassis and larger-capacity bucket can further satisfy the operation requirements for working conditions subject to high intensity. It also has standard high-power air conditioning, new suspension seat, cup holder, magazine bag, storage box and other comfortable and humanized configurations.

The full-open side door and rear hood can provide easy access to the points for daily maintenance and service. The optional rubber tracks, quartering hammers, hydraulic vibrating tamper, rotary excavating drill, deep ditch-oriented bucket, quick changers and other auxiliary equipment have significantly improved its capacity for dealing with all kinds of working conditions.

Product Parameters

Unit	Parameters
Operating weight	8500Kg
Bucket capacity	0.14M³
Engine model	4TNV88
Direct injection	√
4x strokes	√
Water cooling	√
Cylinders	4
Output power of engine	27.6/2200KW/rpm
Max torque/speed	142/1320N.m/rpm
Displacement	2.19L
Travel speed	4.2/2.6Km/h
Slewing speed	13.5r/min
Gradient capability	30°
Ground pressure	36.3kPa
Digging capacity of bucket	23.2KN
Digging capacity of bucket rod	19.3KN
Max traction force	33.9KN
Rated flow of main pump	1x110+11L/min
Pressure of main sadety valve	21MPa
Pressure of traveling system	21MPa
Pressure of swing system	21MPa
Pressure of pilot system	3.9MPa
Fuel tank capacity	65L
Hydraulic tank capacity	70L
Total length	5455mm
Total width	1650mm
Total height	2440mm
Width of rotary table	1500mm
Total width of chassis	1635mm
Track width	300mm
Tread	1721mm
Track gauge	1335mm
Ground clwaranance of counterweight	578mm
Min.ground clearance	350mm
