| US$7,200.00-7,700.00 | 1 Set (MOQ) |

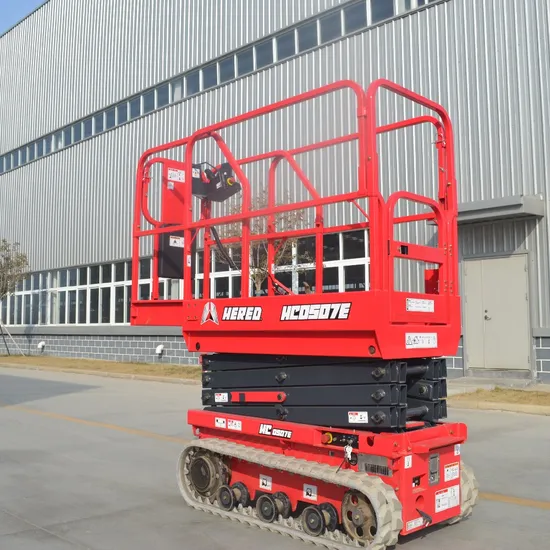

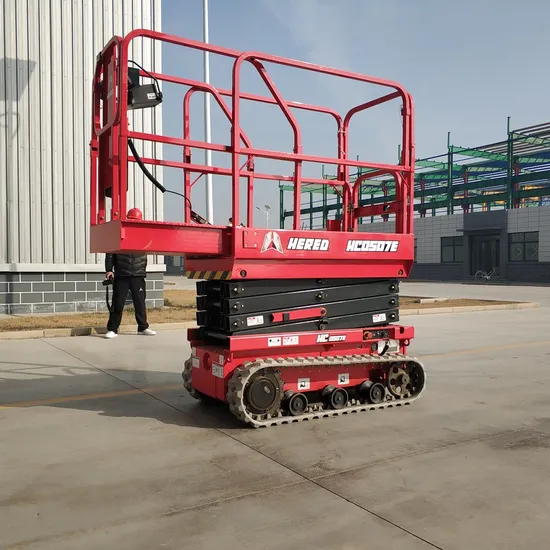

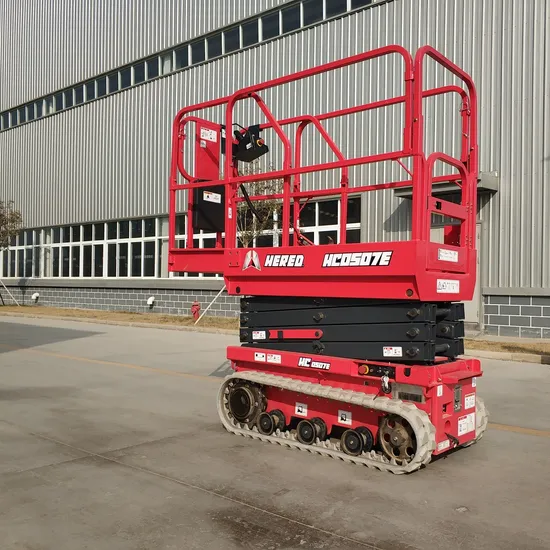

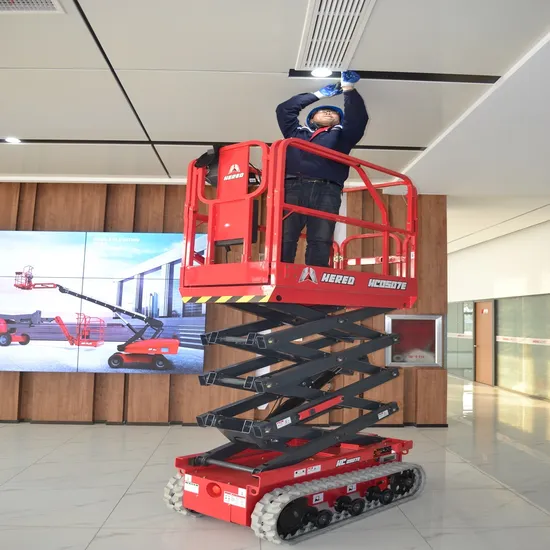

| MODEL | HC0507E |
| A-Max. Platform Height(In/out) | 4.5m/0m |
| Max. Working Height(In/out) | 6.5m/0m |
| B-Platform Length | 1.34m |
| C-Platform Width | 0.72m |
| Extension Size | 0.6m |
| D-Heights (Rails Up) | 2.07m |
| Height (Rails Down) | 1.71m |
| E-Overall Width with Outriggers | 1.48m |
| F-Overall Width | 0.79m |
| G- Ground Clearance | 70mm |
| PERFORMANCE | |
| Platform Capacity | 230kg |
| Extension Capacity | 113kg |
| Max. Occupancy(in/out) | 1/0 |
| Max.Wind Speed | 0m/s |
| Drive Speed (Stowed) | 4km/h |
| Turning Radius | Rotate in Place |
| Up/Down Time | 25/20s |
| Gradeability | 0.25 |
| Max. Slope | 1.5°/3° |
| Leveling angle of the legs | / |
| Drive | Front Crawler |
| Crawler (mm) | 150mmX72mmX43 |
| POWER | |
| Batteries (V/Ah) | 2X12V/100Ah |
| Charger | 100-240VAC/6.3A |
| WEIGHT | |
| Weight | 920kg |
