Hydraulic Crawler Small Size Wheel Construction Backhoe Garden Micro Household Farm Construction Greenhouse Towable Mini Excavator

Product Description

Basic Info.

HT12
Main specifications and dimensions				Main operating range
	Weight	kg	950		Max. digging depth	mm	1800
	Overall length	mm	2300		Max. digging height	mm	2880
	Overall width	mm	960		Max. dumping height	mm	1950
	Overall height	mm	2250		Max. digging radius	mm	3050
	Crawler belt length	mm	1230		Min. rotation radius	mm	1450
	Chassis width	mm	930		Max. digging distance	mm	2300
	Standard bucket capacity	m³	0.025		Push blade lifting height	mm	180
	Standard bucket width	mm	370		Push blade fallinig depth	mm	200
Main performance parameters
	Engine Type		KEPU KD292F/YOUPU KD2V80
	Engine parameter		14kw-3000rpm/12kw-3000rpm
	Working pressure	Mpa	16
	Main pump	ml/r	6
	Gradeability	°	30
	Max. digging force	KN	10
	Operation mode		Mechanical operation

Product Parameters

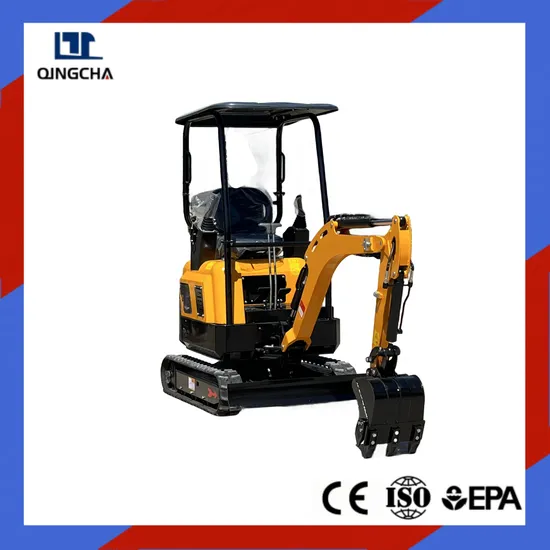

HT12 Mini Excavator
Coming in at under 2200kg, the compact and powerful KEPU KD192F/KUBOTA D722 allows for easy transport from job to job while maximizing your productivity. Landscapers, general construction builders, farmers and utility contractors appreciate the power-to-weight ratio of this machine. With a swing boomand rubber tracks, this compact excavator is built to work in tight spaces and minimize the impact on finished surfaces.Operators stay comfortable all day in the spacious, climate-controlled cab, with high visibility of the jobsite.
TOP FEATURES
• The Engine on a HT35 is KEPU KD192F/KUBOTA D722. • HT35 excavators have excellent cab space, wide visibility, and easy access to controls to maximize operator comfort. • HT35 compact excavator uses an enhanced engine/hydraulic management system. This offers excellent control and high productivity without compromising fuel-efficient performance. • Standard features on the HT35 mini excavator include auxiliary hydraulics and a pattern-control change valve. • Focuses on reliability and serviceability to ensure convenient access and increased up-time on your job site.

HIGH-PERFORMANCE ENGINE
The engine on KEPU KD192F/KUBOTA D722 also uses an advanced hydraulic system. This mini excavator engine puts out optimal power control and work mode selection to improve speed and power during operation. All of these features on KEPU KD192F/KUBOTA D722 reduce fuel consumption during operation.
ONE MACHINE for MULTIPLE PURPOSES

The cab is standard, and the canopy is optional to cope with any working conditions. Two-way auxiliary pipelines are standard, and various attachments can be selected according to actual needs to easily handle digging, grabbing, unloading, drilling, cutting, crushing and other working conditions. The auxiliary pipeline is equipped with a ball valve, which is convenient for customers to cut off the oil circuit when selecting accessories to prevent environmental pollution.
Patent Certificate

Company Profile

Qingdao Qingcha Machinery Manufacturing Co., Ltd. is located in the ash high-tech park of Xinhe Town, Pingdu City,Qingdao. It has been committed to the research and development and production of internal combustion counterbalanced forklifts, battery counterbalanced forklifts, OMV intelligent omnidirectional forklifts,wheel loader,mini dumper,mixer,backhoe loader,excavator and mini digger.


Since its inception, the company has always been to build China's most cost-effective high-quality construction machinery for the purpose of continuous research and development and innovation, the company has large CNC cutting machine, vertical machining center, horizontal gantry milling machine and other equipment more than 40 sets, to achieve all the key components Self-made, providing a strong guarantee for the quality of the product.

For the long-term development of the company, the company regards the quality as the life of the company, establishes a perfect quality assurance system, and has passed the IS09001 international quality system certification.

In the near future, Qingdao Forklift will become one of the well-known R&D, production and export construction machinery bases in the industry, contributing to the prosperity of the domestic and international logistics market and the promotion of innovation and development in the construction machinery industry.
FAQ

1.What services would you offer if I buy from you?
Our trained Professional service team offers high-quality in-time service in a very friendly way. For a good customer. 2.Can you supply the machine with your customer requirement? We have strong technology team, are able to do adjustment design for customers according to users' most requirements. 3.Are you the factory? Yes, the factory Founded in 2015 year.
Location at: Intersection of Huibu Xingye Avenue and Xingguang Avenue in Xinhe Town, Pingdu City, Qingdao.

---
