Product Description
Product Description

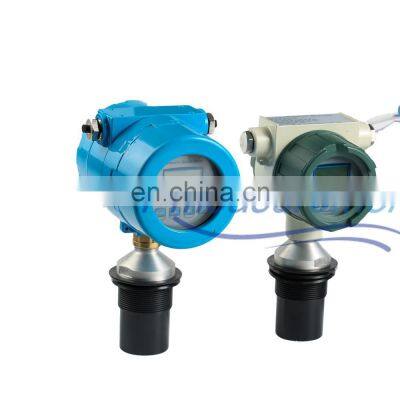

UTG21-H ultrasonic fuel water level meter for waste water UTG21-H ultrasonic level gauge built-in temperature compensation, power adaptive, using a number of self-developed patented technology, with a new signal processing technology, which greatly improves the measurement accuracy of the instrument, the interference echo was significantly suppressed Features.
Product Description
Features
Model
| UTG21-H ultrasonic level meter
|
Range
| 0~15m
|
Blind area
| 0.2m~0.5m
|
Accuracy
| 0.3%
|
Pressure
| Less than four atmospheric pressure
|
Display
| LCD display built-level height or distance
|
Digital output
| RS485 Interface, Mod BUS agreement or custom
|
Analog Output
| 4-20Ma
|
Supply voltage
| DC24V 120mA
|
Protection grade
| IP67
|
Direction angle
| 4-6(full angle)
|
Installation
| Flange
|
Shell material
| Aluminum Die Casting ,proof-explosion shell
|
Ambient temperature
| -20℃~+60℃
|
Application
Packing & Delivery
Related Product
UTG21-BE ultrasonic level transmitter.
UTG21-BE is a non-contact one and dose not directly contact liquid, so the fault rate is low. The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention.
UTG21-PS ultrasonic level transmitter
UTG21-PS is separate type.the sensor PTFE material can be used for a variety of corrosive occasions.
UTG21-PY ultrasonic level transmitter
UTG21-PY includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature.
