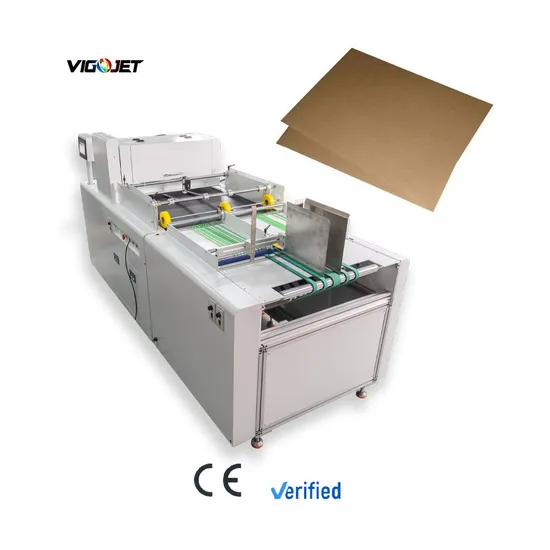

| Product name | OnePass digital printer |
| Number of sprinkler heads | Single nozzle (can be added) |
| Effective screen print width | A4 (21, 42, 63cm) A3 (30, 60cm) |
| Nozzle model specification | HP Industrial sprinkler |
| Feed wide | 60cm (80cm) Optional |
| Way of moving materials | Full automatic feeding |
| Ink color | Black, blue, red, yellow |
| Printing accuracy | 1200x300 1200x6001200x1200dpi |
| Print mode | one Pass printing |
| Inkjet technology | Hot foaming |
| Ink type | Environmentally friendly odorless water-based ink pigment |
| Inking method | Cartridge filling type |
| Print height | 15cm customizable |
| Ink supply system | Secondary ink supply |
| Z-axis drive | Double guide screw |
| Y-axis drive | Speed regulating motor drive |
| X-axis positioning mode | Software data location |
| Y-axis positioning mode | Software data location |
| Print speed | 20-40m/ min |
| Environmental requirement | Room temperature 15-35 degrees Celsius |
| Machine weight | About 300KG |
| Equipment size | (800) 1.5 m * 1.05 m * 1.3 m (600) 1.5 m * 0.85 m * 1.3 m |
| Network cable interface | Gigabit network port |
| Power requirements | 220VAC 50Hz1000W Power consumption (maximum power) |
| Consumable cost | 0.1 yuan per square |
| Fuselage structure | Steel frame structure planer mill |
| Mode of operation | Off-line printing |
