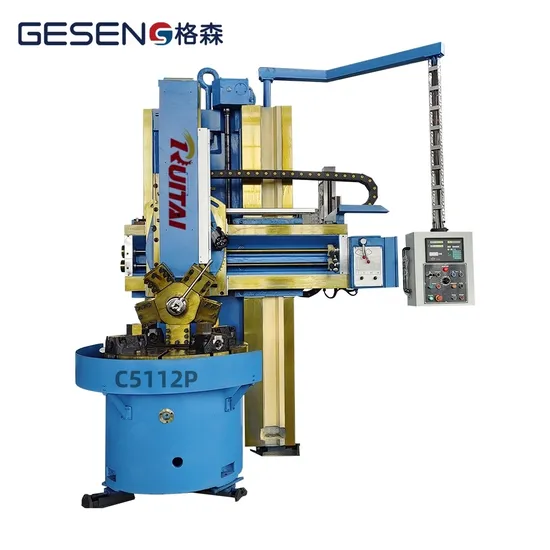

C5112p Pentagonal Tool Post Single Column Machine Manual Vertical Turning Lathe

Product Description

VERTICAL LATHE MANUAL
SINGLE COLUMN VERTICAL TURNING LATHE MANUAL
SINGLE COLUMN VERTICAL TURNING LATHE is suitable for:
1. High speed steel and hard alloy tools,
2. Processing all kinds of ferrous metal,
3. Non-ferrous metal and some non-metallic materials of the workpiece.

SINGLE COLUMN VERTICAL TURNING LATHE can do machining:
1. Finish roughing and fining the inner and outer cylindrical surface,
2. Inner and outer conical surface, flat surface, curved surface,
3. Grooving, threading and other processes

C5112 ram C5116 pentagonal C5120 pentagonal

Parameters Single column conventional vertical lathe
No.	Items	Unit	C5112	C5116	C5120	C5123	C5126
1	Worktable diameter	mm	1000	1400	1800	2000	2250
2	Max. turning diameter	mm	1250	1600	2000	2300	2600
3	Max. turning height	mm	1000	1200	1250	1350	1500
4	Max. Weight of work piece	t	3.2	5	8	8	8
5	Worktable rotary speed grade	grade	16	16	16	16	16
6	Range of table speeds	r/min	6.3-200	5-160	4-125	3.2-100	2.5-80
7	Vertical tool post feed steps	grade	12	12	12	12	12
8	Vertical tool post feed range	mm/min	0.8-86	0.8-86	0.8-86	0.8-86	0.8-86
9	Horizontal stroke of vertical tool post	mm	700	915	1110	1210	1265
10	Vertical stroke of vertical tool post	mm	630	800	800	800	800
11	Main motor power	kw	22	30	30	30	37
12	Machine weight (about)	t	8.5	12	~16	~17	22

CUSTOMIZATION SERVICE
Professional machine design to meet various working demands.
Vertical tool rest/tool turret/working height/worktable/CNC or manual/color

Kindly contact us to get your vertical lathe machine tool.

---
