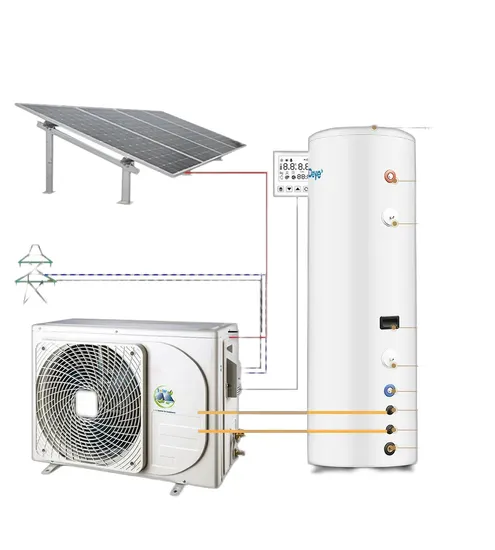

| SOLAR AC/DC AIR SOURCE HOT WATER HEAT PUMP |
| Model Name | DRSA1-ACDC-41/200N1 | DRSA1-ACDC-41/300 | DRSA1-ACDC-55/500 |
| Water Tank Model | DSX-200G | DSX-300G | DSX-500G |
| Water Tank Volume | 200L | 300L | 500L |
| Heating Capacity | 4100W | 4100W | 5500W |
| Rated AC Grid Power | 208-240V/50-60Hz | 208-240V/50-60Hz | 208-240V/50-60Hz |
| Solar Panel Power(DC) | 80V-380V | 80V-380V | 80V-380V |
| Electric Shock Prevention | Class I | Class I | Class I |
| Water Heating 15ºC to 55ºC | 88.1L/H | 88.1L/H | 115L/H |
| Rated Power Consumption | 972W | 972W | 1310W |
| Rated Current | 4.5A | 4.5A | 6.0A |
| COP | 4.22 | 4.22 | 4.2 |
| Max Current(AC) | 7.4A | 7.4A | 8.8A |
| Max Current(DC) | 12.0A | 12.0A | 12.0A |
| Max Power consumption | 1600W | 1600W | 1900W |
| Noise Level | 52dB(A) | 52dB(A) | 54dB(A) |
| Refrigerant | R410A | R410A | R410A |
| Water Proof Level | IPX4 | IPX4 | IPX4 |
| Outdoor Net/Gross Weight | 33.5/37.5kg | 33.5/37.5kg | 37/42kg |
| Outdoor Net Dimention | 802*323*564mm | 802*323*564mm | 802*323*564mm |
| Outdoor Package Dimention | 910*405*622mm | 910*405*622mm | 910*405*622mm |
| Water Tank Net/Gross Weight | 60/68kg | 80/92kg | 138/152kg |
| Water Tank Dimention | Φ520×1600mm | Φ580×1810mm | Φ710×1865mm |
| Water Tank Package Dimention | 550*550*1665mm | 605*605*1915mm | 740*740*1940 |
| Water Inlet/Outlet Connector Size | DN20 | DN20 | DN20 |
| Heat Exchanger Max. Pressure | 4.4MPa | 4.4MPa | 4.4MPa |
| Max Discharge/Suction Pressure | 4.4/1.8MPa | 4.4/1.8MPa | 4.4/1.8MPa |
Test Condition:
Ambient Temp.(DB/WB): 20ºC/15ºC, Water Temp.(In/Out): 15ºC/55ºC |
