| US$3,000.00-50,000.00 | 1 Set (MOQ) |

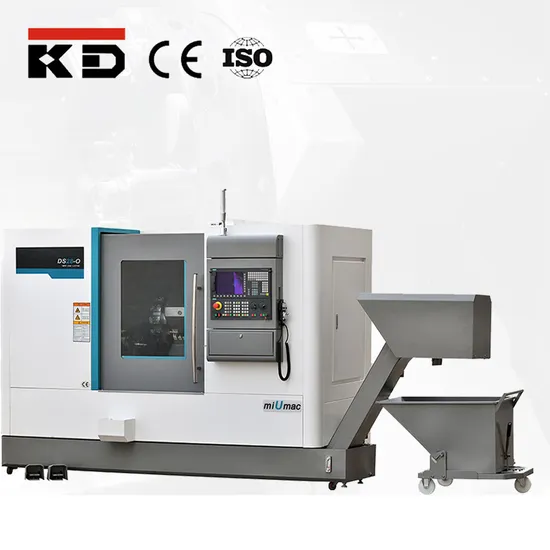

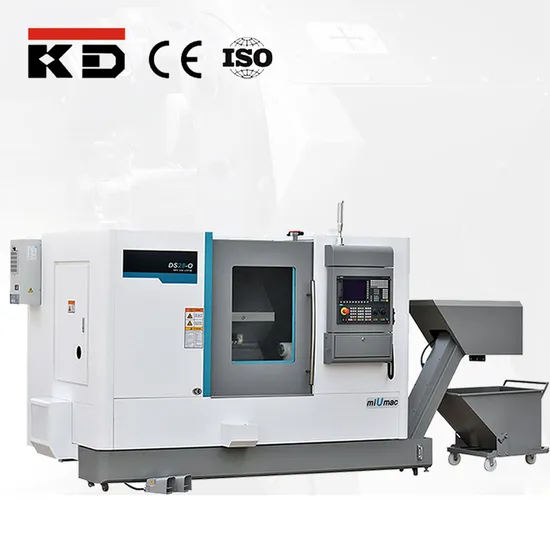

| MODELS | DS28-OH /500 | DS28-OH /1000 | DS28-OH /1500 |
| CAPACITY | | ||
| Max. swing over bed | Ф520mm | ||
| Max. cutting diameter for disc parts | Ф370mm | Ф370mm | Ф370mm |
| Max. cutting diameter for axle parts | Ф250mm | ||
| Max. cutting length | 420mm | 920mm | 1420mm |
| TRAVEL | | ||
| X travel | 255mm | 270mm | 270mm |
| Z travel | 540mm | 990mm | 1490mm |
| FEED | | ||
| Rapid feed speed of X/Z | 30/24m/min | ||
| Linear guide ways width of X/Z | 35/ 45mm | ||
| Ball screw of X | Ø32×10 mm | Ø32×10 mm | Ø32×10 mm |
| Ball screw of Z | Ø40×10 mm | Ø40×10 mm | Ø50×10 mm |
| SPINDLE | | ||
| Max. speed of spindle | 4000rpm | 2500rpm | 2500rpm |
| Spindle nose | A2-6 | A2-8 | A2-8 |
| Diameter of spindle bore | Ф65mm | Ф65mm | Ф80mm |
| Hydraulic chuck | 8″ | 10" | 10" |
| Spindle motor power | 15/18.5kw | 15/18.5kw | 15/18.5kw |
| LIVE TOOL | | ||
| Tool number | 12-T live turret | ||
| Live tool servo motor power | 2.2/3.7kw | ||
| Max speed of live tool | 5000rpm | ||
| Outside diameter of cutting tool shank | 20×20mm | ||
| Inner dia. of cutting tool shank | Ф32mm | ||
| TAILSTOCK | | ||
| Tailstock sleeve dia. | Ф80mm | ||
| Tailstock sleeve travel | 100mm | ||
| Taper hole of tailstock quill | M.T.No.4 | M.T.No.5 | M.T.No.5 |
| OTHERS | | ||
| Positioning accuracy of X/Z | ≤0.010/0.012mm | ||
| Repeated positioning accuracy | ≤0.003/0.005mm | ||
| Power of coolant pump | 180W | ||
| Capacity of lubrication pump | 2L | ||
| Bed structure | 45° slant bed integrated with stand | ||
| Overall dimensions(L×W×H) | 2880×1850×2000mm | 4800×1850×2000mm | 5300×1850×2000mm |
| Net weight | 4300kg | 5500kg | 6500kg |
