High-Efficiency Double Stage PP Woven Bag Granulator Line

Product Description

SJ Series HDPE LDPE Film Plastic Pelletizing Machine Line Film Granulating Line compacting and pelletizing system combines 3 in 1 pelletizing line functions of compacting, plasticization and pelletizing into one step, applied in the plastics recycling and pelletizing process. It is a reliable and efficient solution for plastics film, woven bags and foaming materials granulation.
Two stage machine with two screen changer, so that it can fliter much more impurity. Meanwhile the machine with one vacuum degassing and one natural degassing, then the final pellets will be more beautiful. The machine is with high performance and high efficiency,
Screw is designed with differennt type for different, and the heater also can use Cost Aluminium, cost copper, alloy, keramic or others. Side feeder with mixer, material feeder into the extruder, meanwhile the mixer will be running all the time, the material won't stick together and can be send into the extruder
Machine detail parameter

Item NO.	Item name	Quantity	Power
1	Side force feeder	1 set	7.5kw+1.5KW
2	Φ140/28 single screw extruder	1 set	110kw
3	Hydraulic screen changer system	1 set	2.2kw
4	Φ140/10 single screw extruder	1 set	37kw
5	Hydraulic screen changer system	1 set	2.2kw
6	Water-ring pelletizing system	1 set	2.2kw
7	Chute	1 set	---
8	Centrifugal dryer	1set	5kw
9	Wind transmission and silo	1 set	4kW
10	Electrical control box	1 set	_

Project summary

NO.	Item.	Spec.
1	Material	HDPE, LDPE, PP film
2	Capacity	output::300-350 kg/hr
3	Final products size	Φ3mm
4	Electricity power	380V/3P/50HZ
5	Installed power	250 KW for whole plant
6	Power consumption	70% of installed power
7	Plant area	> 60 Square meter > 3 meter height Estimate line size: 10m(Length)* 2 m(Width)* 3 m(Height) we can make the line turn as I or L shape to fit the buyer's plant
8	Manpower	1-2 Persons required
12	Payment terms	30% by TT as deposit; Balance paid by TT before shippment.
	Delivery time	45 Working days since receive the deposit
	Package	Packing by film.
	Warranty Period	12months since the date of BL(except easy broken parts)
	Shipping	By sea
	Offer validity	35Days

The advantages of this machine 1. Highly efficent: the machine is automatic and with less power consumption.
2. Special screw design: We will design the screw up to customer different material and the material of screw and barrel can be 38CrMoAL or bimetallic.
3. High capacity: the capacity of the machine is about 300kg/h
4. Material come out more stably: material go through from the first stage to the second stage, with two screen changer, much more impurity will be filterd and the material come out from the die won't broken down.
5. Beautiful pellets: two degassing system, no air in the pellets.
6. The machine wih long life.
The layout of the machine
The whole production line
More machine photoes
Feeder
Single screw feeder, feed the material into the extruder equally.
The material of the hopper: SS304
There is sight glass on the hopper, so that the material can be seen how much in the hopper.
Feed power: 2.2kW
With gearbox to control the speed.

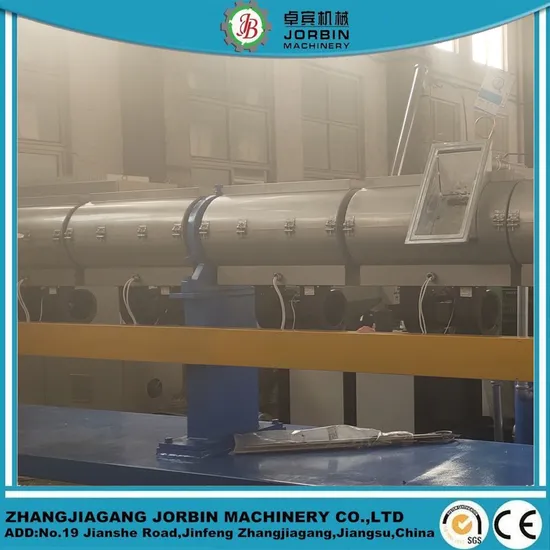

Single extruder
Gear box:high torque,low noise,external connect with cooling recycling system; Hard teeth face reducer
Screw: 38CrMoA1A,Nitrogen treatment
Barrel: 38CrMoAlA,nitrogen treatment,barrel wind-cooling; temperature controller
Drive power:AC motor(160kW)
Degassing system(It has two degassing type,natural degassing and vacuum degassing)
Hydraulic screen changer system
Vertical water-ring hot cut die
Silo
The Finall pellets of these water-ring pelleting way
Pameter of such kinds of machine

Model		Screw diameter(mm)	L/D	Capacity (kg/h)
QL-100/100	SJ-100	100	26~33	100~200
	SJ-100	100	12
QL-120/120	SJ-120	120	26~33	150~300
	SJ-120	120	10
QL-150/150	SJ-150	150	26~33	300~450
	SJ-150	150	10
QL-180/180	SJ-180	180	26~33	800~1000
	SJ-180	180	10

1. We supply below necessary documents with the machine:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book 2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.
3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.
4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.
5. 24Hours service : Cell+86-13915707468

---
