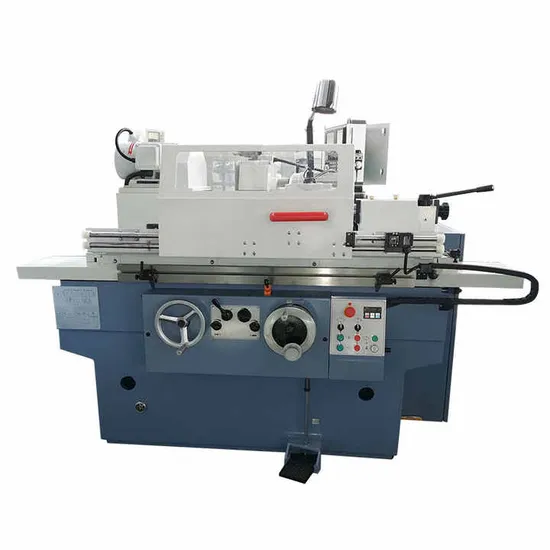

Best Grinding Machine M1420h/F 500mm 800mm Universal Cylindrical Grinding Machine Senmo

Product Description

Cylindrical Grinding Machine M1420H/F Feature

M1420H/F universal Cylindrical Grinding Machine is the latest up to up grade products. For grinding the workpiece of inner and outer cylindrical and tapered, the most suitable for single piece and small batch production use. Headstock by a variable frequency motor drive, continuously variable transmission. Longitudinal movement of the machine by hydraulic stepless transmission, can also hand-wheel drive; wheel lateral movement with hydraulic quick retreat and manual feed function.

Specifications	M1420H/FX500	M1420H/FX800
External grinding diameters	Φ8-200mm	Φ8-200mm
Internal grinding diameters	Φ13-100mm	Φ13-100mm
Center height	135mm	135mm
Workhead spindle speed	50HZ: 25-380r/min stepless	50HZ: 25-380r/min stepless
Max travel of table	650mm	950mm
Hydraulic traverse speeds	0.1-4m/min	0.1-4m/min
Max travel of worktable	50kg	50kg
Grinding length external/internal	500/125mm	500/125mm
Swivel range of worktable	-14°	-10°
Max peripheral speed of grinding wheel	38m/s	38m/s
External wheel size	MaxΦ400x50xΦ203mm MinΦ280x50xΦ203mm	MaxΦ400x50xΦ203mm MinΦ280x50xΦ203mm
Internal wheel spindle rotating-speed	16000r/min	16000r/min
Workhead and tailstock center	NO.4 Morse	NO.4 Morse
Machine motor power	5.625kw	5.625kw
Overall dimensions(LxWxH)	2500x1600x1500mm	3000x1600x1500mm
Machine weight	2500kg	3000kg

Standard Accessories		Optional Accessories
·Complete set of electric equipment		·Wheel balancing stand
·Grinding wheel dresser		·Radius dresser
·Wheel flanges		·Center rest close type
·Wheel balancing mandrel
·3 Jaw chuck
·Chuck base
·Open type steady rest
·Driving dog
·Carbide tipped center
·Support
Working Accuracy
O.D.Roundness	1.5/2.5μm(O.D/I.D)
Uniform of dia. in longitudinal section	5/8μm
Surface roughness	Ra 0.32/0.63μm(O.D/I.D)

Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

---
