12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter 4V 5V 7V 8V 10V 14V 18V 20V 24V 1A 3A 4A 5A 6A 7A Battery Charger CE UL RoHS Kc PSE Approval

Product Description

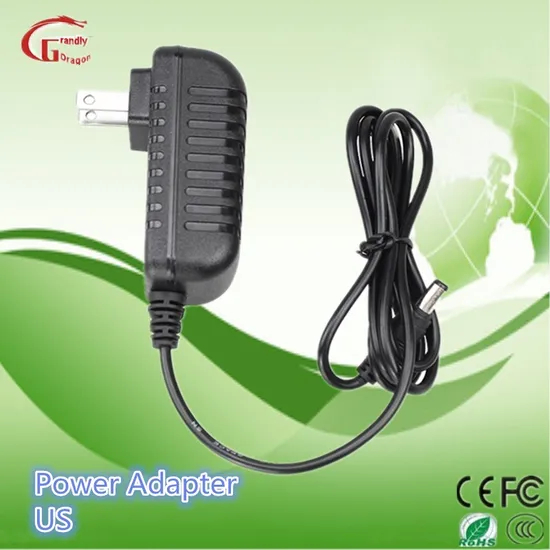

12V 2A AC DC LED LCD CCTV Router Cell Phone Medical Power Adapter Battery Charger
CE UL RoHS Kc PSE Approval
Specifications:

Vin	Safety Approvals Input Voltage Range		100~240Vac
	Operate Voltage Range		90~264Vac
Fin	Input Frequency		50/60Hz
Po	Output Power		24W
Vo	Output Voltage		12VDC +/-5%
Io	Output Current		2A
IiI	Input Current Low Line	Io=Full load, Vin=100VAC	2.5A
Iih	Input Current High Line	Io=Full load, Vin=240VAC	1.2A
Ir	Inrush Current Low Line	Io=Full load, 25ºC ,Cool start,Vin=115Vac	30A
	Inrush Current High Line	Io=Full load, 25ºC ,Cool start,Vin=230Vac	40A
Eff	Efficiency	Io=Full load,Vin=230Vac	88%
REG-i	Line Regulation	Io=Full load	0.5~2%
REG-o	Load Regulation	Vin=230Vac	4~5%
OCP	Over Current Protection	Auto recovery	120~150%
Ttr	Time of Transient Response	Io=Full load to Hakf Load, Vin=100Vac	4mS Max.
Th	Hold-up Time	Io=Full load, Vin=110Vac	10mS Min.
Ts	Start Up Time	Io=Full load, Vin=100Vac	3S Max.
Vp-p	Ripple & Noise Peak to Peak	Io=Full load, Vin=90Vac	1% Max.
Ilk	Safety Ground Leakage Current	Vin=240Vac/60Hz	0.75A Max.
TC	Temperature Coefficinet	All output	+/-0.04%/ºC
Pno	No-Load Power Consumption	No load, Vin=230Vac	0.21W
Vps	Dielectric Withstanding Voltage	Primary to secondary	3750Vac Min./3S

FAQ
Q: Are you a trading company or a manufacturer ?
A: We are manufacturer of more than 20 years' experience
Q:How do you control the quality ?
A:We have QC team comply with TQM to ensure the quality , Each step is compliance to the standards,at the same time ,we will take photoes and shoot video for you if you need
Q: Why should i choose your company
A: Superior quality and low price ,professional technical team ,rich experience ,timely delivery time ,excelent after-sales service ,good reputation and credit
Q: What is the lead time
A: The lead time depends on the quantities ordered ,generally within 7-20days after receiving payment
Q: do you inspect the finished products
A: yes, each step of production and finished products will be came out inspection by QC department before shipping ,and we will provide goods inspection reports for your reference before shipment .

---
