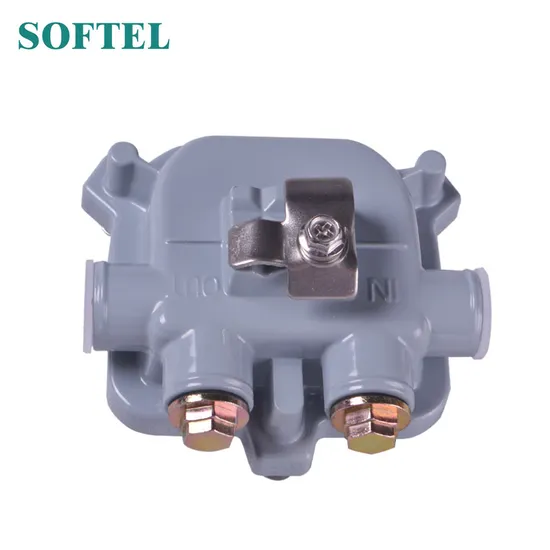

Softel 5-1000MHz Multitap 4 Way Outdoor CATV Tap

US$5.00
1-199 Pieces
US$4.90
200-999 Pieces
US$4.80
1,000+ Pieces

Basic Info.

Model NO.
SFTOFZ4
Condition
New
Frequency Range
5-1000MHz
Power Passing
in - Output Must Pass 10 Amperes Current
Connector
in & out 5/8-24 Unef Female Connector, Tap F Type
Application
Hfc, CATV
Tap Value dB
4 8 11 14 17 20 23 26 29 32
Transport Package
Standard Export Package
Trademark
Softel
Origin
Hangzhou, Zhejiang, China
HS Code
8529102000

Product Description

Softel 5-1000MHz multitap 4 way outdoor catv tap
Summary
5-1000MHz
Response All Ports; about 0.5dB
Current Capacity; 10Amps,60VAC
Impedence ; 75ohm
Specification
Tap Value
 dB
 11
 14
 17
 20
 23
 26
 29
 32
Insertion Loss
In-Out
(-dB Max)
 Frequency(MHz)







5~10
 -
 3.2
 1.6
 1.0
 0.6
 0.5
 0.5
 0.4
11~300
 -
 3.0
 1.7
 1.0
 0.7
 0.7
 0.6
 0.5
301~400
 -
 3.2
 1.9
 1.3
 0.9
 0.9
 0.8
 0.5
401~450
 -
 3.5
 2.0
 1.4
 1.1
 1.0
 0.9
 0.7
451~600
 -
 3.7
 2.2
 1.5
 1.2
 1.1
 1.0
 0.8
601~750
 -
 4.1
 2.6
 1.8
 1.5
 1.4
 1.3
 1.2
751~900
 -
 4.5
 3.0
 2.2
 1.7
 1.7
 1.5
 1.4
901~1000
 -
 4.9
 3.5
 2.5
 2.0
 2.0
 1.8
 1.7
Tap Loss
In-To-Tap
(±1.5dB)
 5~10
 11.0
 15.0
 17.0
 20.0
 23.0
 26.0
 29.0
 31.5
11~750
 11.0
 15.0
 17.5
 20.5
 23.5
 26.0
 29.0
 32.0
751~900
 11.5
 15.0
 17.5
 20.5
 23.5
 26.5
 29.0
 32.0
901~1000
 11.5
 15.5
 17.5
 20.5
 23.5
 26.5
 29.0
 32.0
Tap-To-Tap Lsolation
(dB Min)
 5~10
 20
 20
 20
 20
 20
 20
 20
 20
11~600
 24
 24
 24
 24
 24
 24
 24
 24
601~750
 23
 23
 23
 23
 23
 23
 23
 23
751~1000
 20
 18
 20
 20
 20
 20
 20
 20
