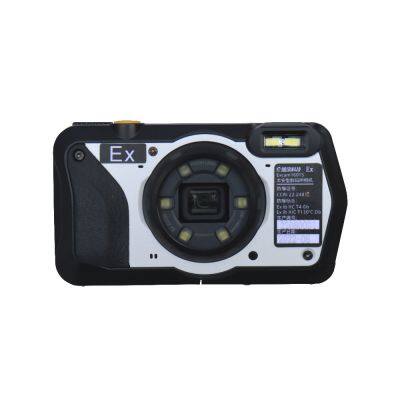

| Camera model | Excam1601S |
| Camera type | Intrinsically safe digital camera |
| Explosion proof sign | Ex ib IIC T4 Gb； Ex ib IIIC T130℃ Db |
| Effective pixels | About 20 million pixels |
| Image sensor | 1/2.3-inch CMOS |
| Display | 3.0-inch wide viewing angle approximately 1.04 million dot LCD display screen, AR coating (only for panel protection) |
| External dimensions | 118.2 (width) x 65.5 (height) x 33.1 (thickness) mm (excluding operating parts and protruding parts) |
| Weight | Approximately 246g (including battery and SD memory card), approximately 219g (body only) |
| Lens | |
| Focal length | 5～25mm |
| Convert to 35mm film specifications | About 28-140mm |
| Aperture | F3.5(W)~F5.5(T) |
| PTZ | |
| Zoom | 5 x |
| digital zoom | 10 x |
| Intelligent Zoom | Approximately 7x when set to 10M and approximately 40.5x when set to 640 (used in combination with optical zoom) |
| Anti-shake | |
| Still photos | Electronic anti shake, using high sensitivity to reduce shaking (high sensitivity mode) |
| Video | Electronic (Movie SR, Movie SR+) |
| FOCUS | |
| Focus Mode | 9 o'clock multiple/key/automatic tracking |
| Focusing range | Standard: 0.5m to infinity (full focal range) |
| Distance from the front end of the lens | Macro: 0.1-0.6m (full focus range) 1cm Macro: 0.01-0.3m (center of focus range) can be switched to infinity, pan focus, or manual focus |
| image size | |
| Still photos | Size: L(2OM)、M(10)、S(5M)、XS(3M)、2M、1M、VGA |
| Video | *2M, 1M only for CALS mode aspect ratio: 4:3, 3:2, 1:1xCALS mode fixed at 4:3 |
| Image processing during shooting | |
| Speed | Standard output automatic, manual (ISO 125-25600) |
| White balance | Automatic, outdoor, shaded, cloudy, incandescent, fluorescent (D: daylight color) N: Neutral white W: Cold white), circular light, manual white balance |
| Modes | Automatic, programmatic HDR、 Video, high-speed camera, digital microscope, interval shooting, interval video, sea view&snow, high sensitivity CALS、 Transmission, fire protection, tilt correction, text, macro zoom, removal of glow, depth synthesis of subject |
| Face detection | Can detect up to 30 people, snap with a smile, selfie assist, selfie assist+snap with a smile, blink detection |
| Pet Detection | 1 (automatic) |
| Replay Mode | Slide show, rotating image, slimming filter, rubbing filter, digital filter (black and white/dark brown, toy camera, nostalgia, color, color extraction, color emphasis, high contrast, starlight, soft, fisheye, brightness, small model), HDR filter, video editing, red eye correction, higher size, cropping, copying image, protection, startup screen settings, file recovery, automatic screen rotation, tilt correction |
| Shutter speed | 1/4000 to 1/4 second (combination of mechanical shutter and electronic shutter) |
| Exposure Control | |
| Exposure method | Split metering, central focus metering, spot metering |
| Exposure Compensation | 2EV (1/3EV step size) |
| Built-in flash | |
| Flash mode | Auto flash, no flash, forced flash, auto flash+reduce red eye, forced flash+reduce red eye |
| Flash mode | Circular six LED flash, two LED flash, supporting video and photo flash fill light, photo flash |
| Drive mode | |
| Drive mode | Single sheet, selfie, continuous shooting, high-speed continuous shooting, M continuous shooting, S continuous shooting, remote control, auto surround |
| Storage media | Built in memory (approximately 6.5GB), sD/SDHC/SDXC memory card, FlashAir memory card |
| Memory | Standard configuration of 32GB, maximum support for expandable 512GB (recommended sandisk: 512GB) |
| Power supply | |
| Model No | Intrinsic safety lithium battery |
| Battery capacity | 1100mAH |
| Positioning | |
| GPS | GPS、GLONASS、QZS+ SBAS GPS display mode: LAT/LON、UTM、MGRS GPS lock, GPS automatic time adjustment, GPS log, GPS input shooting, UTC input shooting |
| COMPASS | Compass display: azimuth, degree, azimuth degree, compass angle correction, compass input shooting |
| Application environment | |
| Temperature | -20℃～50℃ |
| Relative humidity | ≤95％(25℃) |
| Atmospheric pressure | 80 kPa～106kPa |
| Storage temperature | -40℃～+60℃ |
| Place of use | Can be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and can also be used in combustible dust environments. |
| Protection grade | IP68 |
