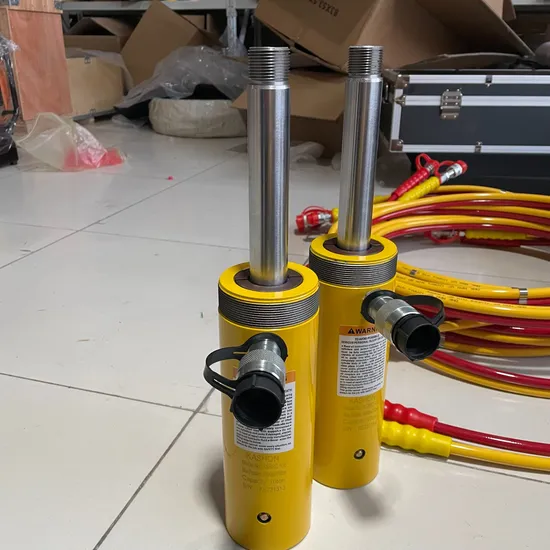

Brc-106 Single Acting 10 Ton 6 in Stroke Hydraulic Pull Cylinder Jack

Product Description

10 ton 6 in stroke hydraulic pull cylinder jack
Product Description
Features:High strength alloy steel construction.
Plunger blow-out protection to prevent over-extension.
Hard chrome-plated plunger for long life.
CR-400 coupler and included on all models.
Baked enamel finish for increased corrosion resistance.
Plunger wiper reduces contamination, extending cylinder life.
Single-acting spring return.
Product Show
Product Parameters

Model	Max. Pressure (bar)	Capacity (T)	Stroke (mm)	Collapsed Height A (mm)	Extended Height B (mm)	Outside Diameter D (mm)	Inner Diameter E(mm)	Cylinder Effective Area (cm2)	Oil Capacity (cm3)	Weight (kg)
KSBRC-25	700	2.5	127	264	391	48	28.4	3.5	45	1.8
KSBRC-46		5	140	301	441	57	42.9	7.3	101	4.5
KSBRC-106		10	151	289	440	85	54.1	15.0	228	9.5
KSBRP-106C		10	150	601	751	85	54.1	15.8	238	15.3
KSBRP-106L		10	150	573	723	85	54.1	15.8	238	13.3
KSBRP-306		30	154	1110	1264	137	88.9	46.4	715	63.1
KSBRP-606		60	153	718	871	140	110.1	72,1	1096	58,3

Application
Related Products

HYDRAULIC HAND PUMP
Model	KSP-392 or KSP-80
Pump Type	Single acting and two speed
Oil Capacity	901ml or 2200ml
Max. Working Pressure	700bar
Weight	4KGS or 10.9KGS

AIR HYDRAULIC PUMP
Model	KSP-160
Pump Type	Single acting and two speed
Oil Capacity	1600ml
Max. Working Pressure	700bar
Weight	9KGS

Electric Hydraulic Pump
Model	KHE-3SM
Power Supply	220V, 50/60Hz, 1PH
Motor Power	0.55kw
Oil Capacity	5L
Flow	4.5L/min(1st stage), 0.35L/min(2nd stage)

Company Profile
FAQ
Q1: What's the MOQ?
A1: MOQ is 1 piece.
Q2: How to make payment?
A2: Paypal, Western Union, Moneygram or T/T transfer.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it will only take 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express (DHL, FEDEX, UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.

---
