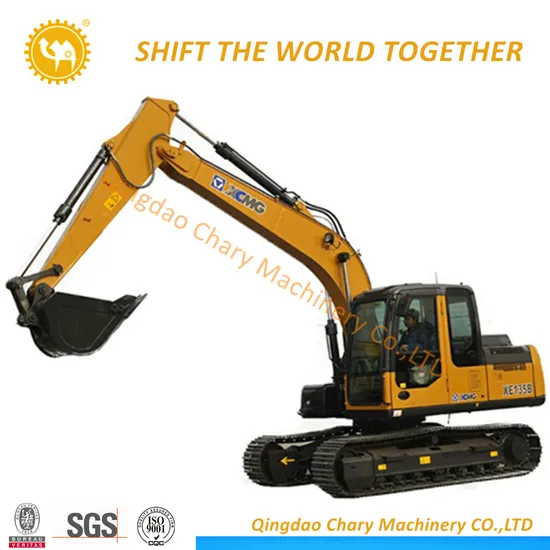

Xe135b 13.8ton Official Famous Crawler Excavator

Product Description

XE135B 13.8ton Official Famous Crawler Excavator

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
Qingdao Chary Machinery CO., LTD



Qingdao Chary Machinery CO., LTD


XE135B 13.8ton Official Famous Crawler Excavator

Operating weight		kg	13800
Standard bucket capacity		m³	0.4-0.52
Engine	Engine Model	/	BB-4BG1TRP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	×
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	69.6/2200
	Max. torque/speed	N.m	337.6
	Displacement	L	4.329
The main performance	Travel speed	km/h	5.16/3.03
	Swing speed	r/min	12.3
	Max. gradeability	/	≥35
	Ground pressure	kPa	42
	Max.Bucket digging force	kN	85
	Max.arm crowd force	kN	65
	Max.traction force	kN	134
Hydraulic system	Main pump	/	2
	Rate flow of main pump	L/min	2×123
	Max pressure of prime relief valve	MPa	31.4/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	25
	Max pressure of pilot system	MPa	3.9
Oil capacity	Fuel tank capacity	L	250
	Hydraulic tank capacity	L	130
	Engine lubrication	L	14
Overall dimensions	A Overall length	mm	7770
	B Overall width	mm	2512
	C Overall height	mm	2880
	D Overall width of upperstructure	mm	2512
	E Track length	mm	3660
	F Overall width of undercarriage	mm	2490
	G Crawer width		500
	H Track length on ground	mm	2910
	I Crawer gauge	mm	1990
	J Clearance under counter weight	mm	964
	K Ground clearance	mm	478
	L Min.tail swing radius	mm	2294
Working range	A Max. digging height	mm	8641
	B Max. dumping height	mm	6181
	C Max. digging depth	mm	5538
	D 8inch horizonal digging depth	mm	5287
	E Max. vertical wall digging depth	mm	4727
	F Max. digging reach	mm	8296
	G Min. swing radius	mm	2335

Qingdao Chary Machinery CO., LTD


XE135B 13.8ton Official Famous Crawler Excavator

XE135B 13.8ton Crawler Excavator 1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
