Factory Direct Sale 1suzu 16000L Water Foam Powder Fire Truck

Product Description

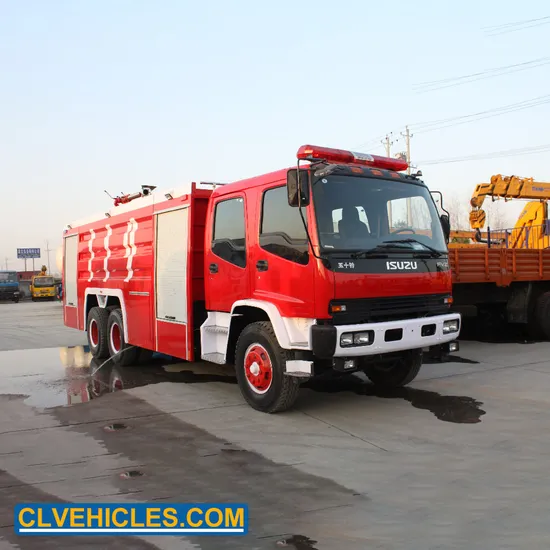

Factory Direct Sale 1suzu 16000L Water Foam Powder Fire Truck
Fire fighting truck is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly, which is also called fire truck, fire fighting tanker, water tank fire truck, fire appliance, fire engine, fire-extinguishing water truck, fire tender, fire service truck, fire water tanker. Our Advantages: ISUZU chassis and engine , perfect and reliable performance Equipped with multiple fire hose coupling and all kinds of fire fighting equipment in tool cabinet . Independent fire pump room , ensure the smooth progress of the work Intelligent control integration system ,mange the working state of appearance directl
Product Specification:

Chassis Specification
Truck model			CLW5234GXFQ2
Cab			ISUZU FVZ CABIN
Driving Type			6*4 Left hand driving
Max Speed (km/h)			85
Overall dimension(mm)			9525*2480*3500
GVW( kg)			23000
Mass in working order ( kg)			12250
Wheelbase(mm)			4650+1300
F/R track base (mm)			1960/1855
F/R overhang (mm)			1335/2300
Approach/Departure Angel			26/14
Tire			11.00R20
Clutch			Single-plate dry diaphragm spring clutch
Steering			Hydraulic steering with power assistance
Gear box			FAST 9-speed
Bridge	Front axle		7T
	Rear axle		18T
Enging	Model		6HK1-TC
	Fuel Type		Diesel fuel
	Type		Water-cooled four-stroke,, direct injection, turbocharged
	Exhaust(ml)		7790
	Max output power(hp)		300
Braking system	Service Brake		Air brake
	Park Brake		Spring energy
Eletric system			24v
Upper-Body specification
Tank	Structure	Welding, there is clapboard inner.
	Material	Water Tank	High quality carbon steel plate, anti-rust treatment
		Water Tank	16000L
Equipment box	Equipment box: at the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. Structure: whole frame is welded to ensure intension and rigidity. Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed.
pump room	on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.
Special Parts Parameter	Fire Pump	Type	Normal pressure fire pump
		Model	CB10/60
		Flux	60L/S
		Pressure	1.0Mpa
	Fire Monitor	Type	For water
		Model	PL48
		Flux	48L/S
		Pressure	1.0Mpa
Additional drive system	Use sandwich PTO, splashing-type lubricate, can put out fire when driving.
Additional operation system	PTP operation lever, fire pump valve operation lever, electronic control button, Hand accelerator operation lever and son on
Additional cooling system	The additional cooling system uses a mandatory water cooling for PTO. Can effectively control the fire truck equipment to extend the service life of equipment because of long hours of continuous work related to the heating
Additional Electrical system system	warning light ,warning sirens
	Pump pneumatic control valve switch,Pump speedometer,Electronic level gauge
	Fire lights, pump room lights, equipment box lights
Additional instrumentation	pressure gauge
	speedometer
	level gauge
	vacuum gauge
Carriage	Carriage is made of high quality steel and Aluminum embossed sheet
Rolling shutter door	Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.
color	The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck.

Product Details:
Factory Direct Sale 1suzu 16000L Water Foam Powder Fire Truck
